Induction Motors

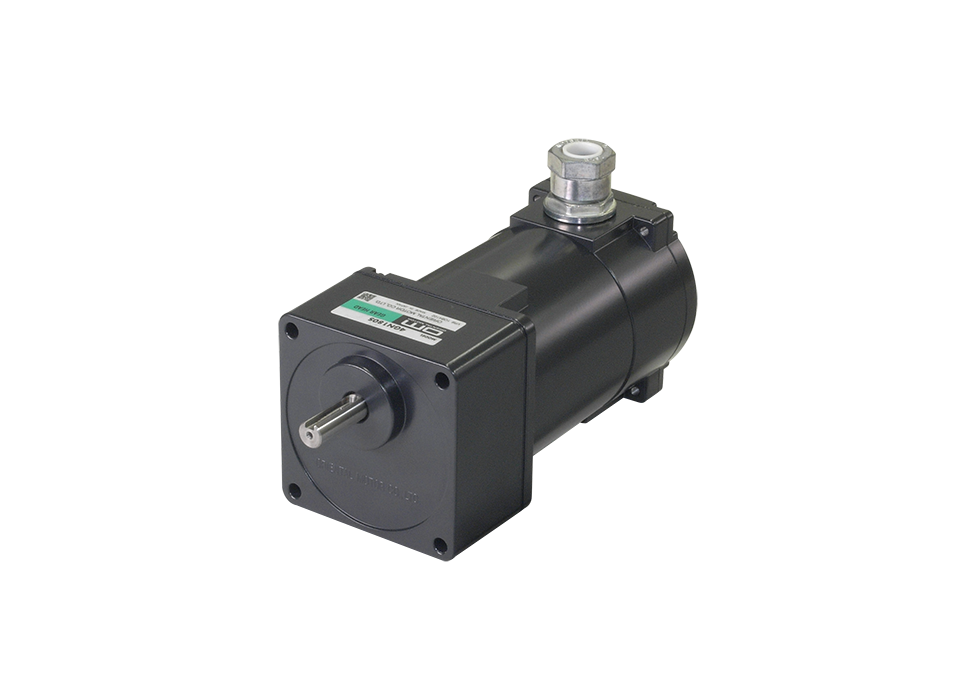

World K Series with IP65 Terminal Box
The World K Series now includes a motor with a terminal box that has an IP65-compliant degree of protection.
This terminal box features a structure that allows for easy wiring and excellent environmental resistance.
A signal type is also available, which responds to the signal of the overheat protective device being engaged.
Features | Induction Motor World K Series With IP65 Terminal Box
IP65 Rating Suitable for Use in a Factory Environment
The World K Series IP65 terminal box motors feature environmentally resistant components that meet the demands of factory environments.
Eliminates Dust and Drips to Achieve an IP65 Degree of Protection
O-rings are used in the motor section and an oil seal structure in the gearhead section to achieve an IP65 degree of protection. Ideal for use when a dustproof and waterproof environment is needed, such as when cutting dust or water droplets fly.

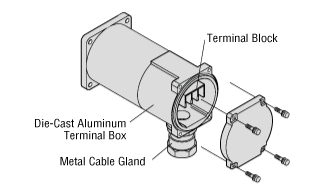

A Strong Metal Terminal Box
A robust aluminum die cast terminal box with metal cable glands installed.
The Motor Terminal Box is Easy to Use
The terminal box arranged behind the motor is constructed to be not only environmentally resistant but also easy to use.
User-Friendly Aspects
- Wiring with round crimp terminals is possible
- The cable outlet position direction can be changed by assembling the motor and gearhead
- The cable gland can be disassembled and a conduit pipe, etc. connected
A New Lineup of Overheat Protective Devices (Thermal protectors) for Signals
The 15 W~40 W motor has a built-in overheat protective device (thermal protector)*. A signal type using a conventional automatic return type thermal protector to signal the operation of the overheat protective device is available. Select the most suitable type for the application.
- *Connect the motor so that it can be shut down when the thermal protector is activated.
A "Combination Type" Delivered With the Motor and Gearhead Assembled
Combination type products are delivered with the motor and gearhead pre-assembled. This accelerates the installation time and eliminates the risk of damaging the motor shaft during assembly. The GN-S gearhead used in the combination type is a long life, noise reduction product with a rated life of 10000 hours.
Product Line
| Series | Frame Size | Output |
|---|---|---|
|
Induction Motors World K Series With IP65 Terminal Box |
60 mm | 6 W |
- *The World K Series with an IP65 terminal box can be combined with a control circuit to enable an instantaneous stop.
-
- For instantaneous stopping:
- Brake pack SB50W (sold separately)
-
