Linear Heads

LH Linear Heads

By Combining with a Motor, Linear Movements Such as Pushing, Pulling, Raising, and Lowering are Possible
Maximum Transportable Mass 70 kg
Stroke 100 to 700 mm
Motor Combination : Reversible Motors/Electromagnetic Brake Motors

Features | Linear Head LH Linear Head

Features of the Linear Head

The motor can integrate with a rack-and-pinion mechanism to provide linear motion for pushing, pulling, raising, and lowering.

	LH Linear Heads
Maximum Transportable Mass	~70 kg
Stroke	100~700 mm
Operating Speed	10 mm/s 20 mm/s 45 mm/s
Combination Motor	Reversible Motors Electromagnetic Brake Motors

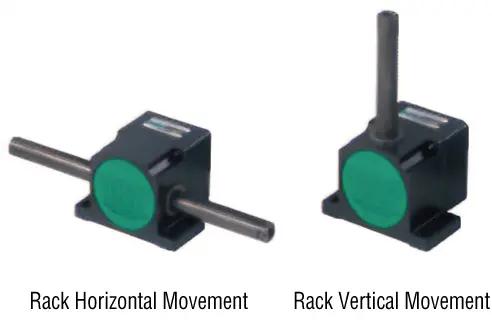

Linear Head Shape (Rack moving direction)	2 types available
Motor Assembly Method	Assemble motor

Reduces Startup Time From Design

Compared to building the rack-and-pinion mechanism on your own, the number of parts used and the labor required for design and assembly can be reduced.

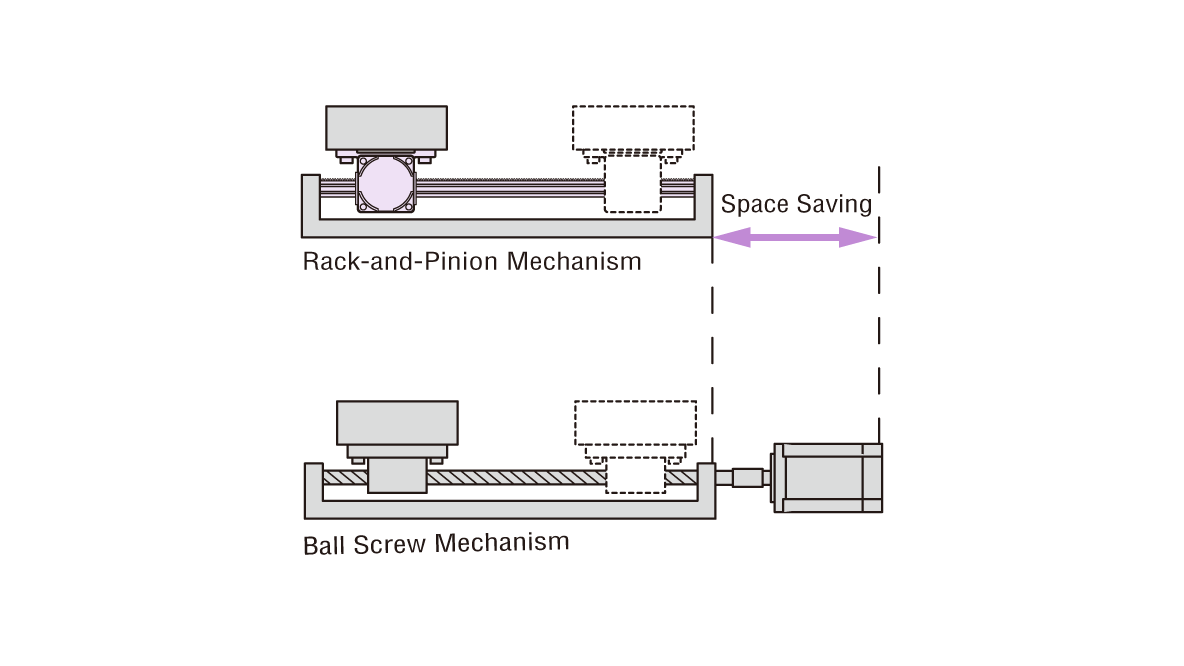

Fix the Rack to Make the Best Use of Space

The motor can run by itself by fixing both ends of the rack.
Effective when it is difficult to find motor space.

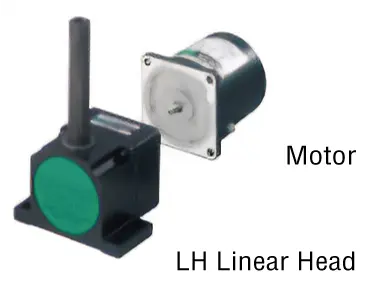

The rack-and-pinion mechanism is easy-to-use and can be incorporated as a component.

Please purchase the linear head and motor separately.

Types of LJ Linear Head (Combined motor output power - W)		W × H × D [mm]	Maximum Transportable Mass kg^1 (Basic speed mm/s^1)			Stroke [mm]
LH Linear Heads	0L (1)	62 × 47 × 115.5	3.8 (20)	6.3 (10)	10 (5)	100, 200
	2L (6)	88 × 66.3 × 154.5 (88 × 66.3 × 194.5)^*2	7.9 (50)	14 (25)	20 (10)	100, 200, 300, 400, 500
	4L (25)	120 × 82 × 181 (120 × 82 × 226)^*2	31 (45)	58 (20)	70 (10)	100, 200, 300, 400, 500, 600, 700
