Features | Electric Linear Slides EZS Series

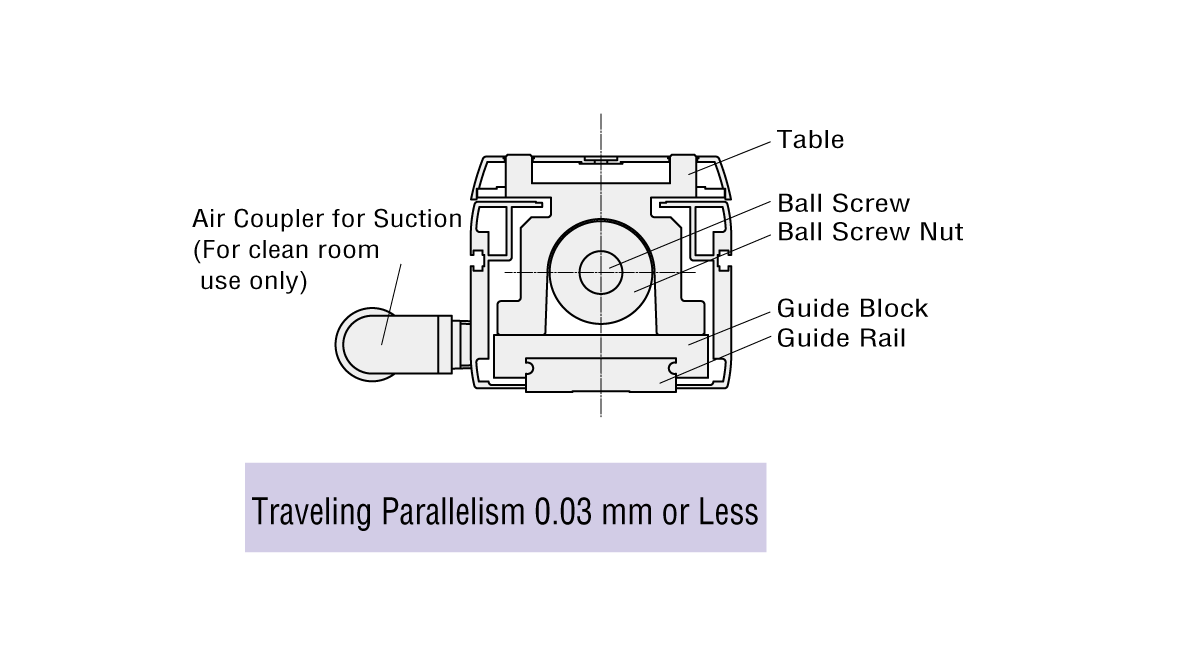

High Permissible Moment

Capable of Driving Heavy Loads at High Speeds

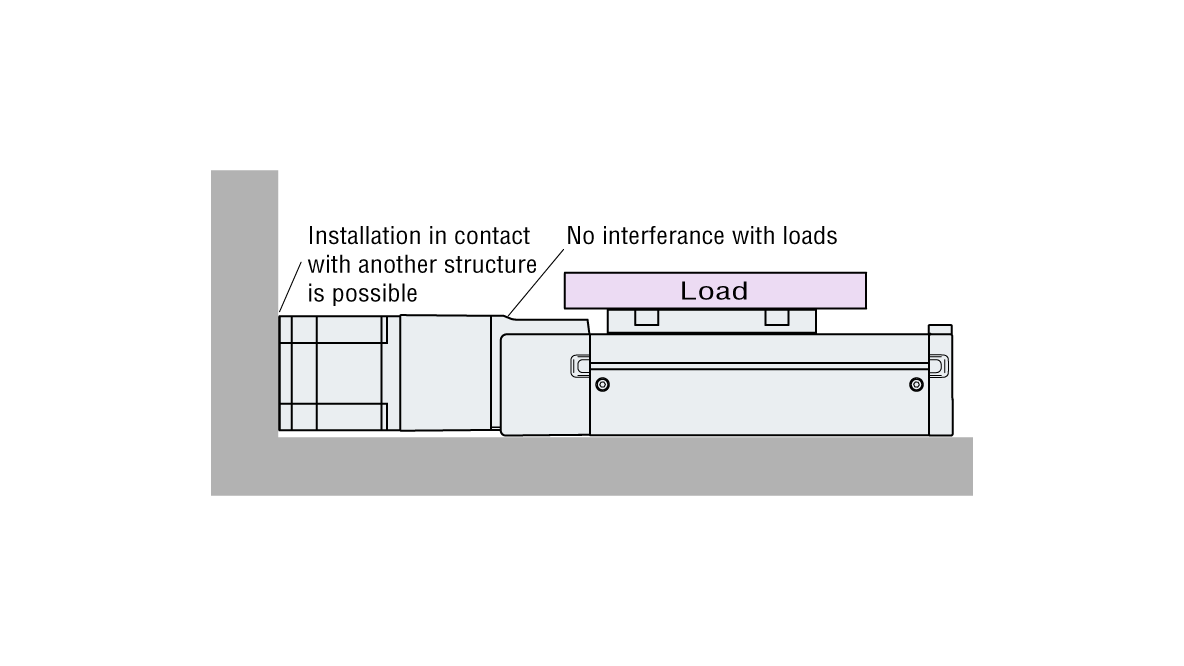

• Avoidance of Interference With Peripheral Equipment

  The mounting direction of the motor can be changed in 4 directions, allowing the cable outlet direction to be freely changed to suit the installation location.

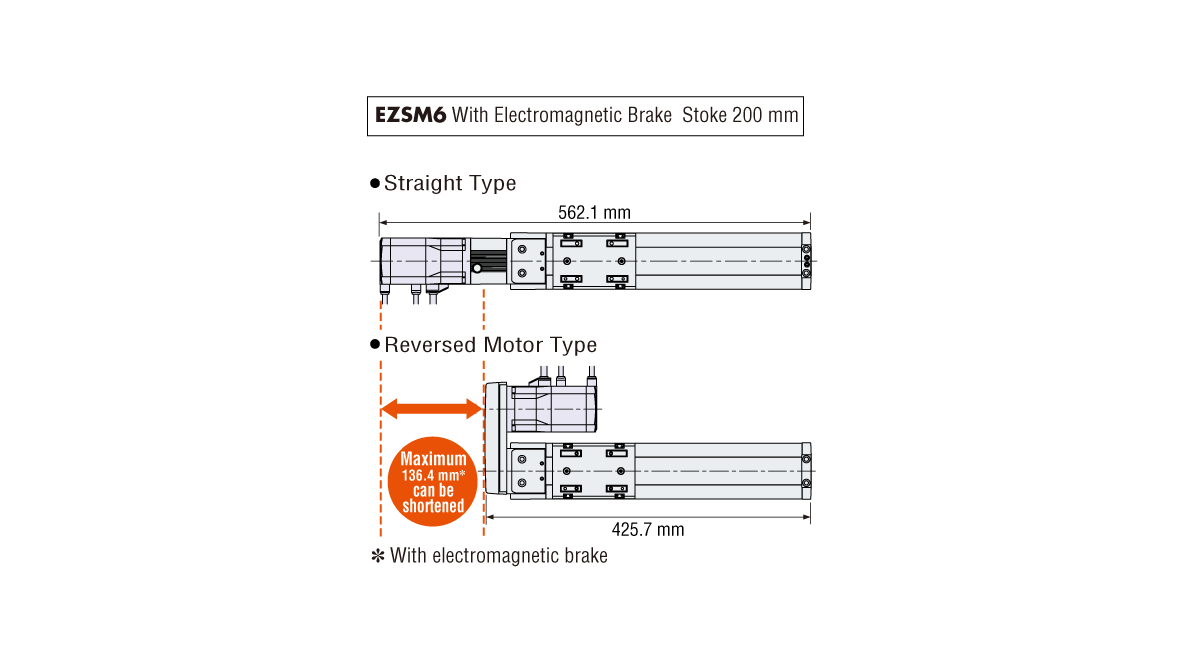

• Reversed Motor Type to Shorten Overall Length

  The length of the reversed motor type is up to 136.4 mm shorter than the straight type. This contributes to space saving with equipment.



Dust Preventing Structure

The low dust-generative roller structure in the table part rotates against the stainless steel sheet to prevent the generation of particles via friction.

For Clean Room Use (ISO Standards Cleanliness Class 3)

In addition to the low dust-generative roller structure, some products for clean room use achieve the cleanliness class of ISO Standards Class 3 (equivalent to FED Standard Class 1) through the use of low dust-generative clean grease.

Refer to here for details on products for clean room use.

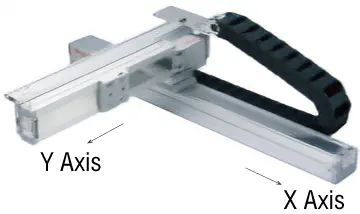

• X-Y Mounting

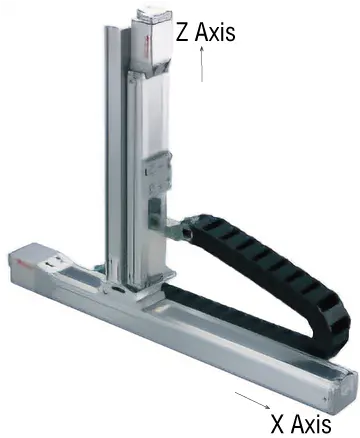

• X-Z Mounting





• A dedicated cable holder (sold separately) is also available.

Battery-Free Absolute Encoder Equipped

It is equipped with a small battery-free mechanical absolute encoder (ABZO sensor). This can help improve productivity and reduce costs.

Simplifying the Main Program via Sequence Function

The AZ Series come equipped with a wide variety of sequence functions such as timer settings for linked operation and during operations, conditional branching, and loop operation. (excluding some models)
It can be set up using the support software MEXE02, which simplifies the sequence program of the host system.

Data Collection of Motor Operation Status and Functions Useful for Preventive and Predictive Maintenance

This software is equipped with various monitoring functions for checking the operating status of the motor.
By using different monitors for different situations, it is possible to shorten the start-up and adjustment time of the equipment, as well as to utilize it for maintenance and servicing.

Monitoring Function to Visualize the Motor Operating Status and Help Collect Data

The ABZO sensor bulit in the AZ Series allows you to monitor the motor's operating status numerically.

[Monitoring With MEXE02 Support Software]

In addition, the built-in controller type can realize data collection at a host master via industrial network.

Types of network converters and the industrial networks they support

Information Functions Useful for Preventive and Predictive Maintenance

By setting arbitrary numerical values for the monitored information items, external signals can be output when the values are reached.
Importing this information into the host controller helps in early detection of problems and adjustment of product maintenance timing.

Examples of Information Functions

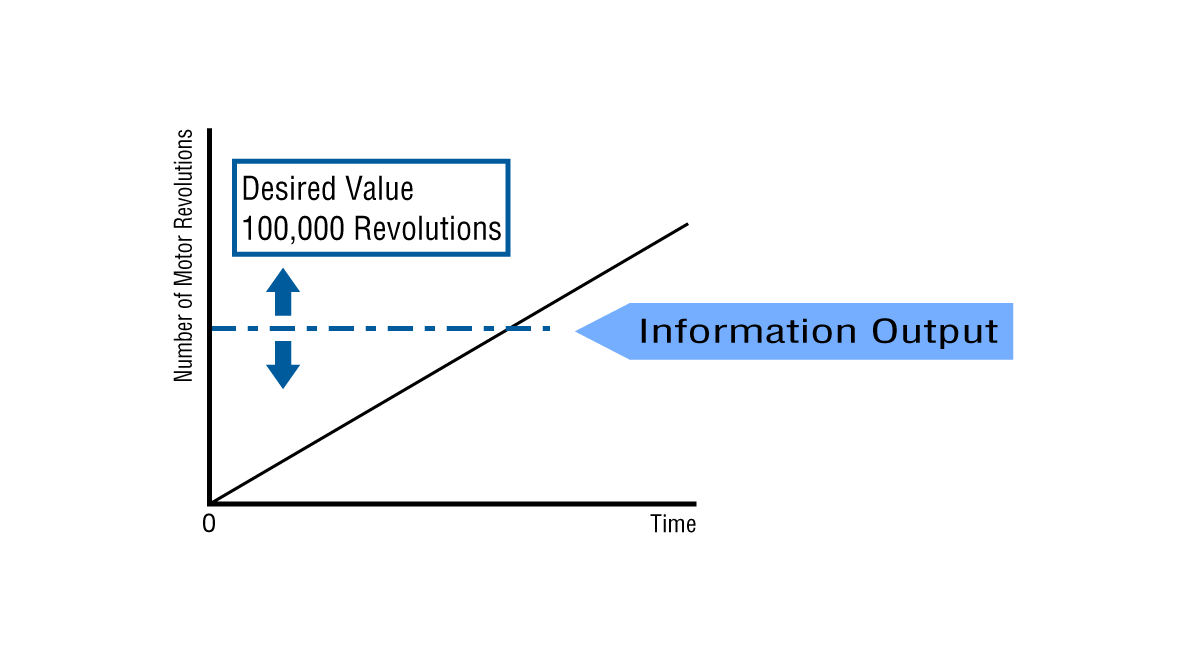

• TRIP Information

  You can set the number of rotations you want to output in advance, and output when that number is reached. (Motor operation will continue)

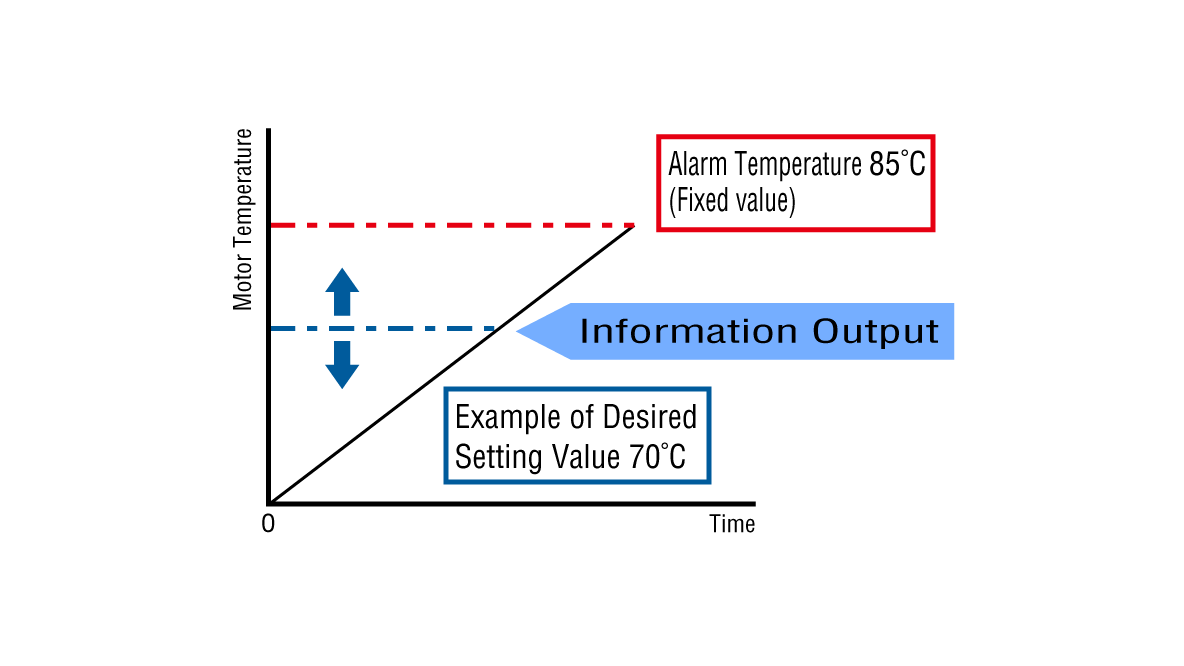

• Temperature Information

  You can set the desired output temperature in advance, and the driver will output when it reaches that temperature. (Motor operation will continue)



Standardized Wiring, Control, and Maintenance Parts

Various actuator products equipped with the αSTEP AZ Series are available.
They each have the same motor and driver, which allows for standardized wiring, control, and maintenance parts.

Wiring Standardization

The wiring for motor cables, I/O signals, and power supply is the same.

Control Standardization

These products can be operated via the same method, since the control method is the same. For the network control, the remote I/O and the command code are also the same. It saves you the trouble of creating a program.

Unification of Maintenance Parts

Maintenance parts can be minimized, since the motor, driver, and cable are common to all. Management costs (parts cost, management space) can be reduced.

AZ Series-Equipped Product Line

Electric Actuators (AZ Series equipped)

• The power supply input of the equipped motor differs between Series. Refer to each Series page for the detailed product line.

Drivers That Can be Selected to Match the Host Controller

The lineup is available for a variety of controls, systems, and interfaces.

• DC input mini drivers and multi-axis driver lineups are also available.

• *Available when using a network converter (sold separately).

• *EtherCAT® is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.
• *EtherNet/IP™ is a trademark of ODVA.
• *PROFINET is a trademark or registered trademark of PROFIBUS Nutzerorganisation e.V. (PNO).
• *MECHATROLINK is a registered trademark of the MECHATROLINK Members Association.
• *SSCNETⅢ/H is a registered trademark of Mitsubishi Electric Corporation.
• *CC-Link is a registered trademark of the CC-Link Partner Association.

Easy Drive From PC with Support Software MEXE02

By using the support software MEXE02, you can set and edit operation data and various parameters, as well as teach and monitor various conditions.

Click Here to Download the Support Software

Comprehensive Support From Start-up to Maintenance with a Variety of Functions

• Startup and Evaluation

  Useful functions for wiring check and test operation are provided.

  • Setting and Saving of Operation Data
  • I/O Monitoring
  • Teaching, Remote Operation
• Adjustment

  The following functions are available to help you adjust motor operation after the equipment is installed.

  • Waveform Monitoring
• Diagnosis and Maintenance

  Diagnostic and maintenance functions are available for trouble diagnosis and maintenance after operation is started.

  • Alarm Monitoring
  • Unit Information Monitor
  • Status Monitor

•

•

Click Here for Details of Support Software Functions
