AC Cross Flow Fans

MF Series

ACクロスフローファン MFシリーズ
  • Uniform and Wide Air Flow
  • Wider Air Flow when Multiple Units are Used
  • AC Input, Impeller Length 150 mm/300 mm

Features | AC Cross Flow Fan MF Series

Can Provide Uniform and Wide Air Flow

It can send out a wide, uniform air flow.
In addition, the compact rectangular shape and right-angle wind-bending feature of the unit allows for effective use of space, such as installation in a corner of the equipment.

Wind Flow

Wind flow

Air Flow and Cooling of Narrow Widths and Thin Spaces

It is suitable for air flow and cooling in narrow and long spaces (the corner of the equipment).

Air flow and cooling of narrow widths and thin spaces

Even Wider Air Flow is Possible

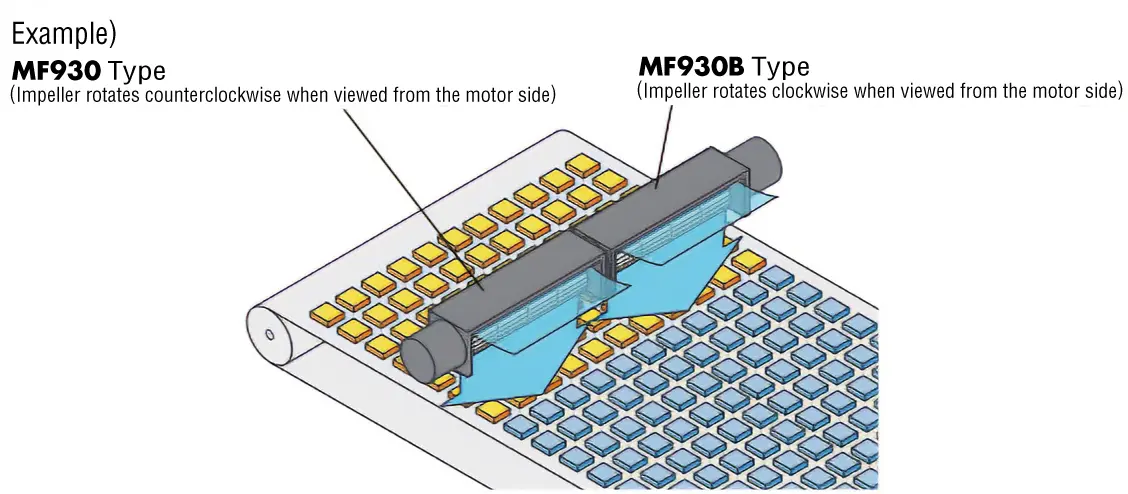

2 types of products are available, with the motor mounted on the right side or on the left side.
By using the 2 products together, a wide air flow and cooling of up to 600 mm is possible.

Wide Air Flow and Cooling of Up to 600 mm

Wide Air Flow and Cooling of Up to 600 mm

Product Line

Series Power Supply Voltage
[V]
Impeller Length [mm]
150 300
MF Series Single-Phase 100/110/115
Single-Phase 200/220/230
Narrow down Products

Narrow down Products

Download

Catalog

View More About F-73_fan_mf_mfd
F-73_fan_mf_mfd

F-73_fan_mf_mfd

Cross Flow Fan MF Series and MFD Series

PDF

Operating Manual

Lineup and Related Information
