Features | Brushless motor BMU Series

Rotate and Push. Easy Speed Control.

Easy speed control with video

Simple Wiring. Immediate Start.

Easy wiring and startup with video

Maximum Rotation Speed 4000 r/min, Speed Ratio 1:50 (2.5 times higher than conventional products)

The BMU Series has a maximum speed of 4000 r/min. A speed ratio of 1:50 (80~4000 r/min) is achieved. Speed regulation has also been greatly improved from ±0.5 % to ±0.2 % of conventional products.

Advantages of Brushless Motors

The brushless motor achieves high efficiency by employing permanent magnets in the rotor section.
The energy saving motors reduce power consumption and CO₂ emissions.
Furthermore, the small size and light weight of the motor helps conserve resources and contributes to carbon neutrality initiatives.

• Learn more about the strengths of brushless motors
• A story of speed control motor introduction - a comparative case study with inverters

• Speed Display

  Displays the motor rotation speed in increments of 1 r/min. Calculate the conveyor gear ratio and set the "Gear Ratio" parameter to display the conveyor transportation speed in m/s.



• Load Factor Display

  With the rated torque of the motor at 100 %, the load factor can be expressed as a percentage (40~200 %).
  The load condition during start-up, as well as the load condition due to the aging deterioration of the equipment, can be confirmed.



• Protective Function

  Equipped with various protective functions, such as the overload protective function and the overvoltage protective function.
  When any protective function is activated, the alarm code is shown on the display and the alarm signal is output.



4-Speed Operation

4-speed operation is possible by setting the data to operation data No. 0, No. 1, No. 2, or No. 3, and switching the input of the M0 and M1 terminals.

Note

When operating in 4-speed settings, the rotation direction of the motor cannot be changed by external input signals.
(30, 60, 120 W)

Setting the Acceleration/deceleration Time

The setting for the acceleration time and deceleration time can be adjusted with the acceleration/deceleration time potentiometer, or can be done via the digital setting.

• Setting Range: 0.0~15.0 sec (Initial value: 0.5 sec)

Fine adjustment of the shock mitigation is possible when starting and stopping the load, and the time can be freely set to match the takt time.

Output Shaft Holding When Stopped

The load can be electrically held when the motor is at standstill. (Holding force of approximately 50 % of the rated torque)

Note

If the power supply to the driver is turned OFF, the holding force dissipates. This cannot be used to prevent a fall during a power outage.

Other Functions

• Setting Dial Operations Lock
• When operating by an external signal, operation of the switch on the front panel can be set to "Invalid".

Locking Lever Type Connector for Direct Connection (Connector type)

A locking lever type connector specifically designed for small motors allows direct connection between motor and driver.

Simple Connection

Cable connection is easy due to the locking lever that does not require screw fitting.

Installation Method

• Insert the Connector
• Turn Down the Locking Lever
• Connection Completed

Direct Connection With Motors and Drivers^*

Without an extension cable, a connection of up to 10 m is possible.

Flexible cables are also available

Use the flexible connection cable in applications where the cable is bent and flexed repeatedly.

• *For the connector type, watertight, dust-resistant connection cables are available for relay connection.

Cable Outlet Direction Can be Selected

Features of Watertight, Dust-Resistant Motors

Excellent Protective Structure, Degree of Protection

• Motor Structure

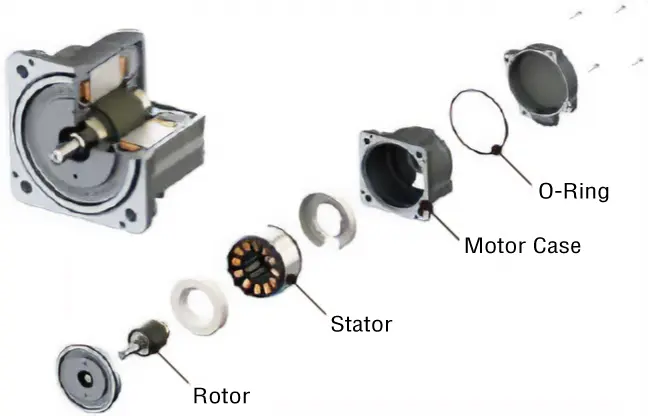

  A sealing insert (O-ring) is used for the mating part to prevent water from entering the inside of the motor.



• Connector Structure

  The connector structure has a built-in gasket and O-ring for improved waterproofing.
  It is IP67-compliant, including the connector part.



Water-Washable IP67 Rating

Can be washed with water while still attached to the equipment.

Usable in dusty applications

Waterproof Test Conditions:

Immersion to a depth of 1 m for 30 minutes

"Water-Washing Resistant Test" Which Takes Into Account Deterioration Over Time Original Evaluation of Oriental Motor

• *Click here for more details on test conditions.

Improved Anti-corrosion Properties

Special rust-resistant coating is applied, and stainless steel material is used for the output shaft and screws. The mounting surface is also painted to prevent rusting, even when assembled to stainless steel equipment.

Matches a Clean Environment

No cooling fan needed, because of the high efficiency motor. Therefore, there is no need to worry about generating dust from outside.

New Connection Cable With IP66/IP67 Rating (For connector type)

Watertight, dust-resistant connection cable for relay connection of motors and drivers are now available.
The connector of the relay section is IP66/IP67-compliant.

• For more details about the products, please contact your nearest branch or sales office or Customer Support Center.
• Click here for the catalog of watertight, dust-resistant connection cable

In addition to the conventional parallel shaft gearhead GFV gearheads, a lineup of gearheads with features such as high gear ratio, high strength, and space saving is available.
The permissible load and maximum permissible torque of the output shaft have been greatly increased.

Gearhead Types and Features

Gearhead Type	Parallel Shaft Gearhead			Right-Angle Gearhead	Hollow Shaft Flat Gearhead
	GFV Gearhead	JV Gearhead	JB Gearhead	JH Gearhead	FR Gearhead
External View
Features	Steel shaft, stainless steel shaft Tapped hole at the end of the output shaft H1 food-grade lubricant is also available	High gear ratio Stainless steel shaft	high rigidity High Gear Ratio Integrated foot mount	Space saving, cost saving high strength Stainless Steel Shaft	Space Saving, Cost Saving high permissible torque
Output Power	30 W, 60 W, 120 W 200 W, 300 W, 400 W	200 W, 300 W, 400 W	200 W, 300 W, 400 W	60 W, 120 W, 200 W 300 W, 400 W	30 W, 60 W, 120 W 200 W, 300 W, 400 W
Gear Ratio	5~200	100~450	5~1200	5~200	5~200
Rated Life	10000 hours	5000 hours	5000 hours	5000 hours	10000 hours
Permissible Radial Load*	1400 N	3123 N	3672 N	2405 N	2040 N
Permissible Axial Load*	400 N	480 N	577 N	550 N	800 N
Permissible Torque*	70 N·m	198 N·m	518 N·m	82.8 N·m	54 N·m

• *This value is for output power of 200 W, 3000 r/min, and the maximum gear ratio.

Click here for more information on gearhead features.

Significantly Increased Permissible Load Flange Drive Adapter (Sold separately)

Mounting on a parallel shaft gearhead increases permissible radial and axial loads.

For more information, please click here.
