Features | Driver for 5-Phase Stepper Motor CVD Series Fully Closed-Loop Control Type

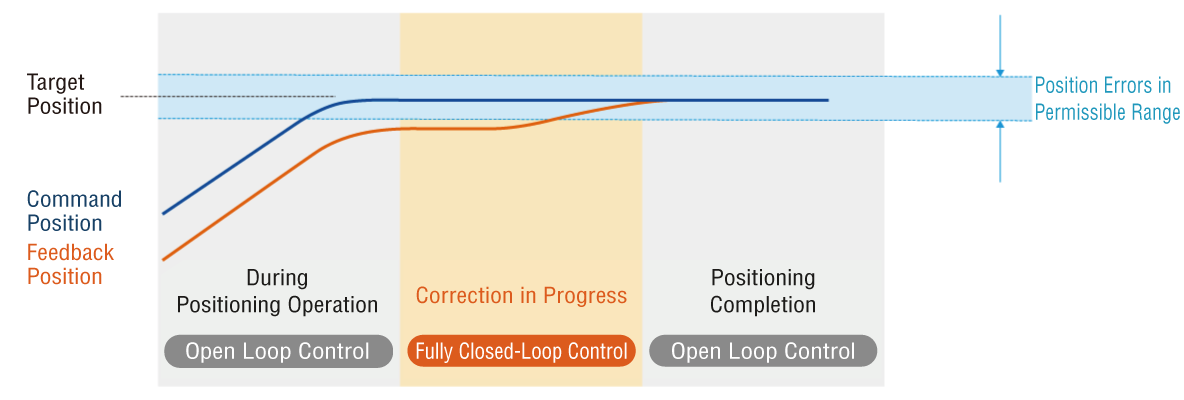

Fully Closed-Loop Control of Stepper Motors

At the start of positioning, open loop control is performed by taking advantage of the high response of the stepper motor, and position correction is performed using feedback from an external sensor once the position command is completed.

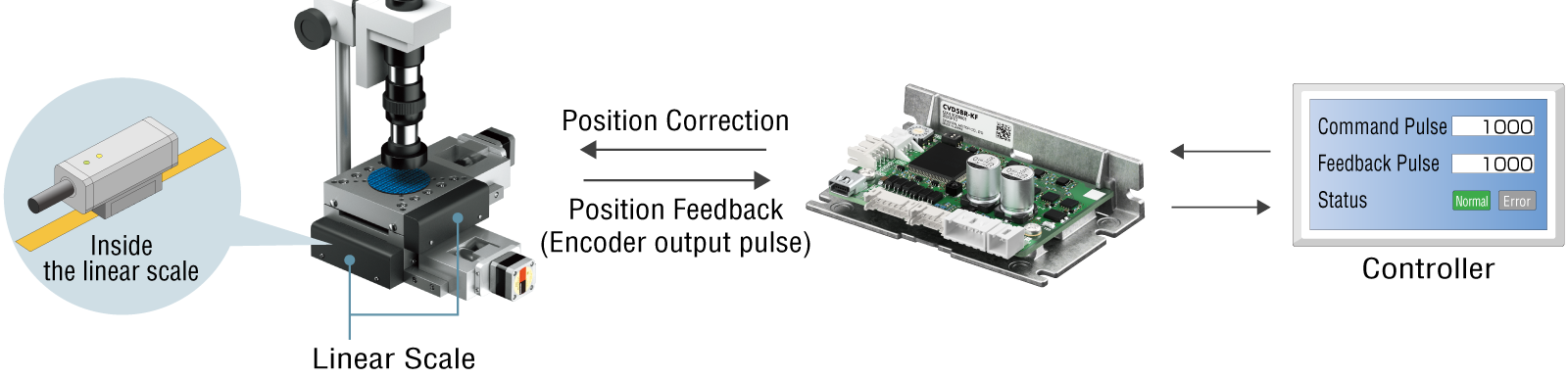

Fully Closed-Loop Control

High Precision Positioning

The difference in the feedback position relative to the command position is corrected by a fully closed-loop control that directly feeds back the position within the mechanism. It contributes to the design of equipment that requires submicron high-precision positioning.

High Precision Positioning

Reference

Lost Motion*1 Measured Data

  • Open Loop Fully Closed-Loop
    0.51 μm 0.15 μm (target accuracy within ±0.2 μm)
  • Measurement Conditions

    • Feed screw lead 1 mm
    • Linear scale resolution 0.1 μm
    • In-Position Range: 1 cnt*2
    • Measured using laser measuring equipment
    • Lost Motion Measured Data
  • *1 This is the difference between the motor positioning in the CW and CCW directions relative to the target position and the stop position in the rotation direction.
  • *2 Position is corrected with a target error of 1 count of encoder pulses (-0.2~0.2 μm).

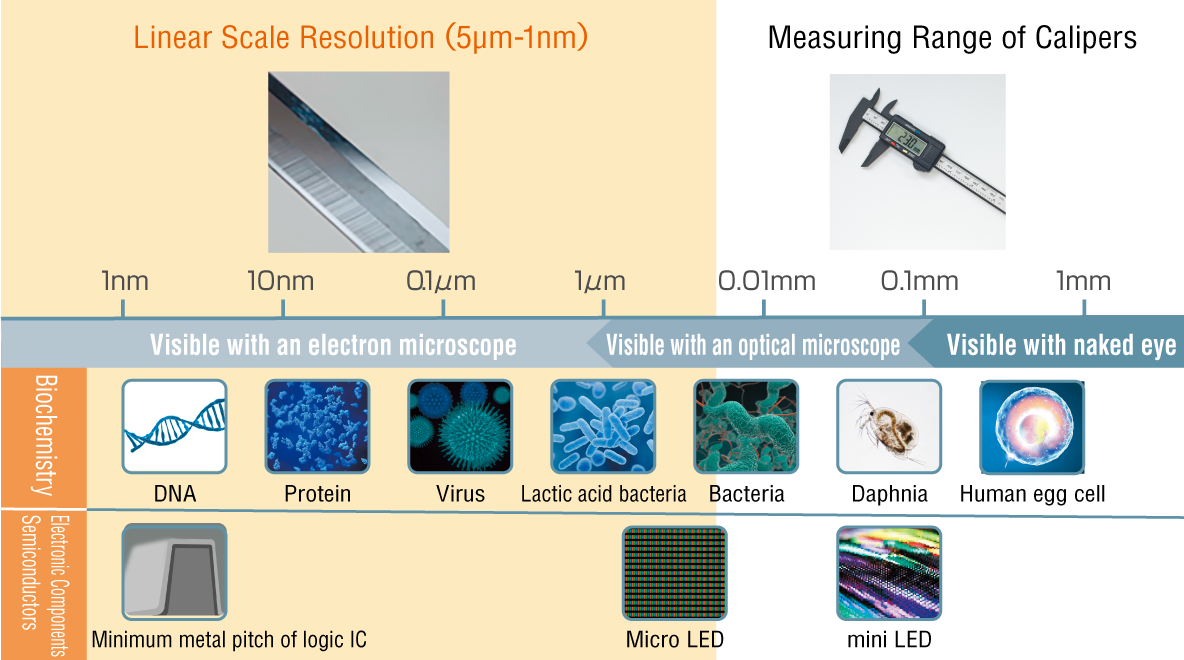

Linear Scale Resolution

Linear Scale Resolution

Stepper motor eliminates the need for gain adjustment and hunting

  • No Need for Gain Adjustment
    No need for gain adjustment to match the mechanism as is the case with servo motors. Since positioning operation does not always use encoder feedback, there is no need to adjust belt pulleys, cams, etc. to suit the mechanism and load.
  • Holding the Stop Position Without Hunting
    When positioning is completed, the motor stops by its own holding force without hunting. This is ideal for applications where vibration when stopping is a problem.
High Precision Positioning

Compatible with various external sensors to match the mechanism

Various types of sensors from various companies are supported, and feedback from the sensor type appropriate for the mechanism can be used.

Various Sensors From Various Companies

Common Driver Sizes and Installation Methods

A mounting plate common to the CVD Series is used, and the same mounting hole pitch is used. Drivers with different connector orientations are available to match the installation method of your driver.

Driver Size

Mass: 67 g

Driver That Can be Selected According to the Installation Method

Right-Angle Type With Mounting Plate With Mounting Plate
Vertical Placing Installation Image
Horizontal Placing Installation Image
The connectors are oriented horizontally to the board. The connectors are oriented vertically to the board.

Examples of driver installation

Support Software, Monitoring Functions

Easy Drive From PC with Support Software MEXE02

By using the support software MEXE02, you can set and edit operation data and various parameters, as well as teach and monitor various conditions.

Click Here to Download the Support Software

Comprehensive Support From Start-up to Maintenance with a Variety of Functions

  • Startup and Evaluation

    Useful functions for wiring check and test operation are provided.

    • Setting and Saving of Operation Data
    • I/O Monitoring
    • Teaching, Remote Operation
  • Adjustment

    The following functions are available to help you adjust motor operation after the equipment is installed.

    • Waveform Monitoring
  • Diagnosis and Maintenance

    Diagnostic and maintenance functions are available for trouble diagnosis and maintenance after operation is started.

    • Alarm Monitoring
    • Unit Information Monitor
    • Status Monitor
  • Operation Data/Parameter Setting Screen
    Operation Data/Parameter Setting Screen
  • Waveform Monitoring
    Waveform Monitoring

Click Here for Details of Support Software Functions

Driver Product Line/Applicable Motors

Driver Product Name Motor
Drive Current
Input Current
(A)
Applicable Motor
With Mounting Plate With Mounting Plate
Right-Angle
Applicable Series Product Name
CVD5B-KF CVD5BR-KF 0.35 A/Phase 0.6 5-Phase Stepper Motors
PKP Series
PKP52□MN03
0.75 A/Phase 1.4 PKP52□MN07
1.2 A/Phase 1.7 PKP52□N12
1.8 A/Phase 2.8 PKP54□MN, PKP54□N18■2
PKP54□N18■
2.4 A/Phase 3.0 PKP56□FMN, PKP56□FN24■2
0.35 A/Phase 0.6 5-Phase Stepper Motors
PK Series
PK513, PK52□P
0.75 A/Phase 1.4 PK52□H, PK54□
1.4 A/Phase 1.8 PK56□
0.75 A/Phase 1.4 Hollow Rotary Actuators
DH Series
DHM28PAK2, DHM42PAK
0.35 A/Phase 0.6 Compact Electric Cylinders
DRLII Series
DRLM20
0.75 A/Phase 1.4 DRLM28, DRLM42
1.4 A/Phase 1.8 DRLM60
  • *The following is a partial list of product names. Can be combined with products containing the product names listed here. However, this excludes those with encoders.
  • *A number indicating the length of the motor case is specified where the box □ is located in the product name.
  • *Either A (single shaft) or B (double shaft) indicating the configuration is specified where the box ■ is located in the product name.
