Integrated Robot Controller & Drivers
MRCU Series
- Robot controller and AZ Series driver (up to 8-axes equipped) in one package

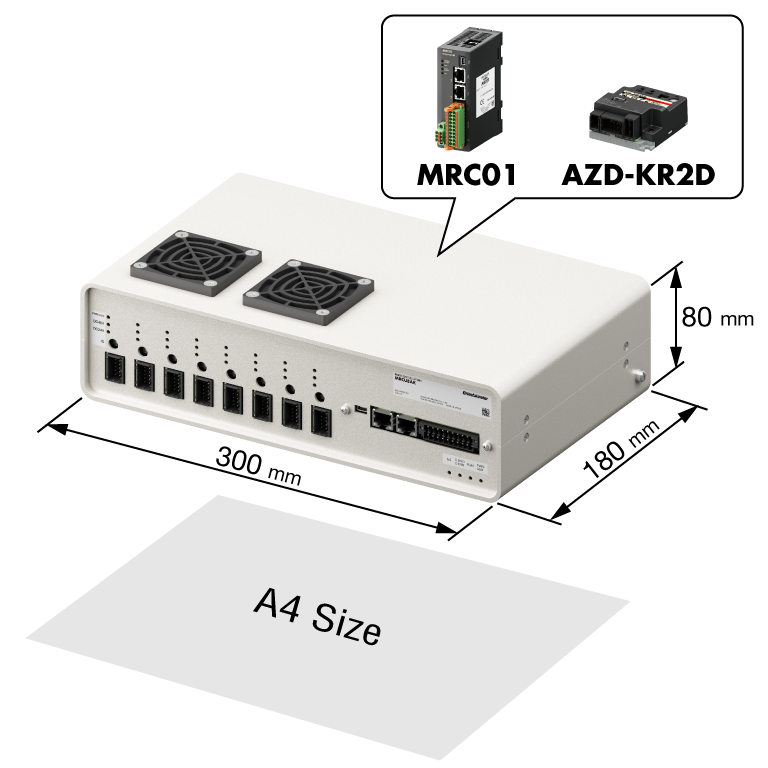

- Equivalent to A4 Size (300 mm x 180 mm x 80 mm) to Save Space
- Easy Wiring and Reduced Risk of Incorrect Wiring
- Can be combined with Small Robots OVR, AZ Series and electric actuators equipped with AZ Series (DC input)
Features | Integrated Robot Controller & Drivers MRCU Series
Controller and Driver in One Package
The robot controller MRC01 and the AZ Series driver (up to 8-axes equipped) are combined into one package.
This eliminates the need for wiring between the controller and drivers or between drivers.
The compact size, equivalent to A4, contributes to space saving.
Control: Ethernet/IP or I/O
Power Supply: 24/48 VDC
Easy Operation for Machine Designers With No Experience in Sequence Control Using PLCs
The functions and usability are the same as the robot controller MRC01. It can easily teaching and check the operation programs set up with the programming software MRC Studio (free) using only a PC.
Easy Introduction of Robots Into Existing Systems
MRCU Series links to the host controller using Ethernet/IP™ for direct control. The Small Robots OVR or in-house robots can be easily added to existing equipment without making significant changes to the control system. Programming software MRC Studio (free) can be used to program the robot. The Small Robots OVR has pre-input mechanism information, making it easier to perform the initial settings.
- *The MRCU Series can also be operated with an I/O connection (without a host controller).
- ・Additionally, a DC power supply and end effector are required.
- ・Cables are sold separately.
- ・CC09MRCU030(length 3 m) is available for the power supply cable.
Product Name
Integrated Robot Controller & Drivers MRCU Series
- MRCU ①
- 6A ②
- K ③
| ① | Series |
|
|---|---|---|
| ② | Number of Axes |
|
| ③ | Power Supply Specifications |
|
Power Supply Cable for MRCU Series
| Product Name | Length |
|---|---|
| CC09MRCU030 | 3 m |
Product Details Information
For detailed product information such as specifications, dimensions, CAD, etc., click on the product name link below.
MRCU3AK (3-axis)
MRCU4AK (4-axis)
MRCU5AK (5-axis)
MRCU6AK (6-axis)
MRCU7AK (7-axis)
MRCU8AK (8-axis)
Products for Combination
In addition to the Small Robots OVR, it can be combined with the AZ Series or electric actuators (DC input) equipped with the AZ Series.

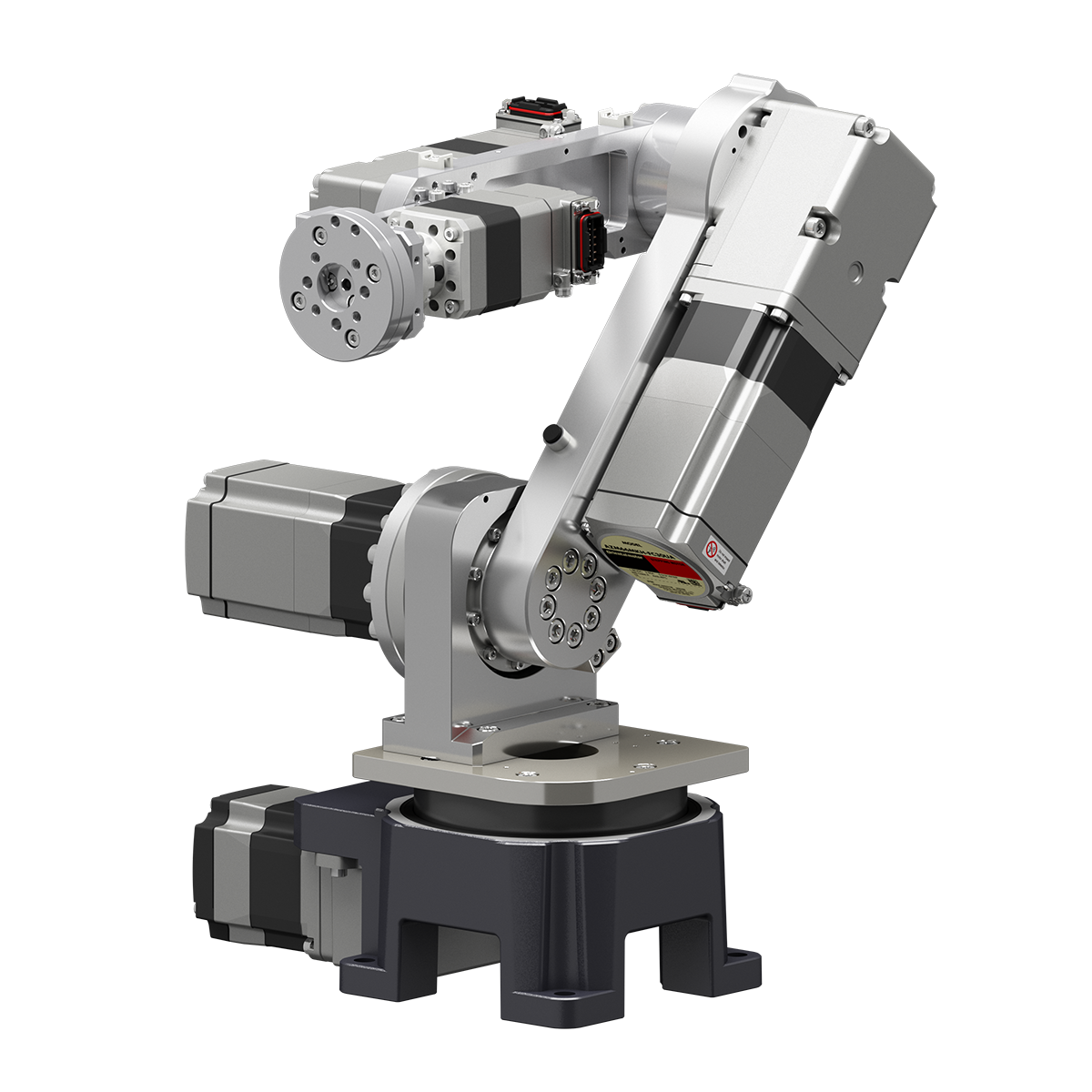

Small Robots OVR
AZ Series
The driver for driving is built into the MRCU Series.

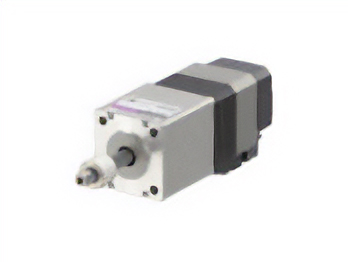

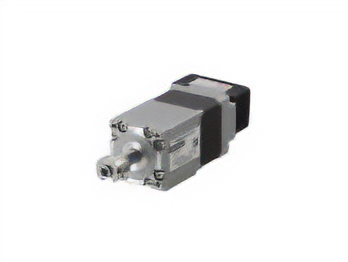

Electric Actuators
The driver for driving is built into the MRCU Series.
Electric Linear Slides EZS Series
For Clean Room Use
