Compact Electric Cylinders
DRS2 Series
- A Compact Structure That Integrates a Ball Screw and Stepper Motor
- Equipped with Closed Loop Stepper Motor
- Stroke 40/50 mm, Frame Size 42/60 mm, Maximum Thrust 500 N
- Ultra-High Precision Positioning
Features | Compact Electric Cylinder DRS2 Series
Key Features
Integrated Structure of αSTEP and Ball Screw
Achieve Highly Accurate Positioning by Combining the Highly Accurate αSTEP With a Ball Screw
By integrating the hollow rotor and ball screw nut without using couplings or other connecting parts, the rigidity of the parts and the effect of backlash due to combining are reduced.
2 Types of Ball Screws for Drive
Drive Ball Screw | Precision | Rolled |
---|---|---|
Repetitive Positioning Accuracy | ±0.003 mm | ±0.01 mm |
Minimum Travel Amount | 0.001 mm |
Achieve Large Transportable Mass and High-Speed Operation*
Lead | 2 mm | 8 mm |
---|---|---|
Transportable Mass (Common to both horizontal and vertical directions) |
10 kg | 5 kg |
Maximum Speed | 50 mm/s | 200 mm/s |
- *The specification values in the table are for a guide type with 42 mm frame size.
The shortest positioning time can be easily calculated
For applicable products of Oriental Motor's electric actuators, a support tool is available to calculate the reference positioning time according to the "model" and "operation conditions."
αSTEP AZ Series Drive Motor Equipped
- Features a built-in battery-free absolute encoder with no external sensors required for continuous monitoring of the motor position
- High Reliability With Closed Loop Control
- High Efficiency Technology Reduces Motor Heat Generation and Saves Energy
Allows Stable, Fine Feed
Equipped with αSTEP, which enables stable repetition of finely-detailed movements, 1 step at a time. Ideal for fine adjustment of cameras and lenses.
Smooth Low Speed Operation
The microstep drive and smooth drive function* reduce vibration at low speed and allow for smooth movement. Ideal for drive shafts that stably supply solution from a syringe.
- *The smooth drive function automatically microsteps based on the same traveling amount and traveling speed used in the full step mode, without changing the pulse input settings.
Contributes to Size and Weight Reductions of Equipment
The compact body with integrated αSTEP and ball screw can contribute to reducing equipment size and space saving.
Our leading-edge lightweight equipment provides improved design flexibility.
Any Combination of Types and Additional Functions is Possible
Guide Type
This product has high rigidity guide that can fix the load to the cylinder.
Directly installing the load is easy.
Non-Guide Type
The compact shape without any guide allows direct integration into equipment.
This product can be used as a compact thrust force shaft in the guide section of equipment for load transportation.
Product Line of Type With Guide and Non-Guide Type With Electromagnetic Brake
Products with the power off activated type electromagnetic brake are available. The stop position can be held when the power is OFF. Even when mounted in the vertical direction, there is no risk of the load falling during maintenance work.
Reduces Startup Time
Compact Body Houses Entire Linear Motion Mechanism
As there is no need to make the parts in-house, the time required for "equipment design and parts selection" and "assembly and accurate mounting adjustment" can be reduced, leading to more efficient equipment start-up.
Parameters Required for Operation Already Set
Mechanical parameters such as lead and stroke are set by the ABZO Sensor at the time of shipment. After purchase, it can be set in "mm" units, contributing to reduced equipment start-up time.
No Home Sensor Required
Since position information is managed mechanically by the ABZO sensor, external sensors such as a home sensor and limit sensor are not required. Regular maintenance issues when using external sensors can also be avoided.
Advantages of AZ Series Equipped
Battery-Free Absolute Encoder Equipped
It is equipped with a small battery-free mechanical absolute encoder (ABZO sensor). This can help improve productivity and reduce costs.
- Mechanical-Type Sensor
Retains positioning information even when power is not supplied - Multi-Rotation Absolute Encoder
Absolute position detection is possible with ±900 (1,800) revolutions of the motor shaft from the home position
No External Sensors Required
As it is an absolute system, home sensors or limit sensors are not required.
Advantages
- Improved High-Speed Return-to-Home + Return-to-Home Accuracy
- Reduced Cost
- Simple Wiring
- Not Affected by External Sensor Malfunction
Battery-Free
Mechanical sensors do not require batteries.
Positioning information is managed mechanically by the ABZO Sensor.
Advantages
- No need to replace batteries
- Unlimited Driver Installation Possibilities
- Safe for Overseas Shipping
Simplifying the Main Program via Sequence Function
The AZ Series come equipped with a wide variety of sequence functions such as timer settings for linked operation and during operations, conditional branching, and loop operation. (excluding some models)
It can be set up using the support software MEXE02, which simplifies the sequence program of the host system.
- Positioning Operation Data Setting Value (max. 256)
- General-Purpose I/O Signal Counts (Input 10, Output 6)
- Communication I/O Signal Counts (Input 16, Output 16)
AZ Series-Equipped Product Line
Since the motors installed are the same, the operating and maintenance methods are the same.
Electric Actuators (AZ Series equipped)
Electric Linear Slides | Electric Cylinders | Compact Electric Cylinders | Rack-and-Pinion System | Electric Grippers | Hollow Rotary Actuators |
---|---|---|---|---|---|
EAS Series EZS Series EZSH Series |
EAC Series | DR Series DRS2 Series |
L Series LJ Linear Heads Combination With AZ Series* |
EH Series | DGII Series |
- The power supply input of the installed motor differs between Series. Please refer to each series page for the detailed product line.
- *For the LJ linear head, purchase the AZ series separately and assemble it for use.
Driver Features and Product Line
Drivers That Can be Selected to Match the Host Controller
The lineup is available for a variety of controls, systems, and interfaces.
Driver Type | Compatible Interfaces | Single Axis Driver | |
---|---|---|---|
DC Input | |||
Network Compatible | Drivers are controlled directly from a host control device through industrial network | EtherCAT | ○ |
EtherNet/IP™ | ○ | ||
PROFINET | ○ | ||
MECHATROLINK-Ⅲ | − | ||
SSCNETⅢ/H | − | ||
Built-in Controller | Operation data is built into the driver. Controllable by Modbus (RTU) and I/O. Can be controlled via CC-Link by using a network converter. |
Modbus (RTU) I/O CC-Link* |
○ |
Pulse Input with RS-485 Communication | Controlled by pulse signal. Motor status information can be monitored via Modbus (RTU). | Pulse input Modbus (RTU) |
○ |
Pulse Input | Controlled by pulse signal | Pulse input | ○ |
- DC input mini drivers and multi-axis driver lineups are also available.
- *Available when using a network converter (sold separately).
- *EtherCAT® is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.
- *EtherNet/IP™ is a trademark of ODVA.
- *PROFINET is a trademark or registered trademark of PROFIBUS Nutzerorganisation e.V. (PNO).
- *MECHATROLINK is a registered trademark of the MECHATROLINK Members Association.
- *SSCNETⅢ/H is a registered trademark of Mitsubishi Electric Corporation.
- *CC-Link is a registered trademark of the CC-Link Partner Association.
Applications and Convenient Usage
Applications
Guide Type
Driving a Dispenser
Press Fit Pins
Non-Guide Type

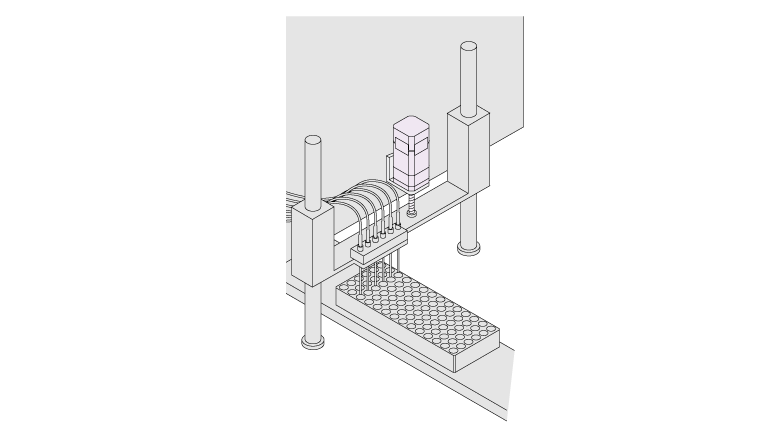

Automatic Micro-Plate Dispenser
Mounting Example
Guided Type/Non-Guide Type
Mounting direction is front mounting.
- The figure shows the guided type.
Efficient Push-Motion Operation
Flexible Push Force and Timing
The various types of electric actuator can easily transition to push-motion operation after positioning operations are completed. In addition, push force and timing are flexible.
Note
Please refrain from performing push-motion operation with the DR Series 1 mm lead compact electric cylinders. Because the TLC signal will be output prior to completion of push-motion operation, it may not be completed normally.
Push-motion operation can be used with other electric linear slides, compact electric cylinders, and electric grippers.
Advantages
- You can set the push force and push timing to an operation data number, and then select the data number to change the settings.
- There are different ways to change the pressing phases, such as dropping the force so that the position does not shift, slowly increasing the force, or rapidly increasing the force.
- *The illustrations above are reference diagrams for the DRS2 Series of compact electric cylinders.
Can be Used With Low Speed Push-Motion
The motor can approach the load at high speed. The motor decelerates just before hitting the surface at low speed.
Advantages
- Since the pressing impact is minimal, a mechanism for shock absorption is not required.
- The motor can approach at high speed just before reaching the surface, thus reducing the takt time.
- *The illustrations above are reference diagrams for the DRS2 Series of compact electric cylinders.
Pulse Input Type Can Also be Used for Push-Motion Operation
When T-MODE input is set, push-motion operation is possible, without the overload alarm for the pulse input type being generated.
This is useful for push-motion operation while using pulse input control.
Can Detect Forgotten Load Insertion Without Any External Sensors
The presence or absence of load can be checked by the output signals (TLC output and IN-POS output) from the driver.
-
- IN-POS Output
- Output signal sent when positioning operations are completed.
-
- TLC Output
- Output signal sent when output torque reaches the torque limiting value setting during push-motion operation.
- *The illustrations above are reference diagrams for the DRS2 Series of compact electric cylinders.
Various Operating Patterns and I/O Signals (Applicable to built-in controller type drivers, etc.)
With this type, the operation data is set in the driver, then selected and executed from the host system. In addition, operation data can be combined or shifted to another operation data triggered by an internal or external ON or OFF signal.
Support Software, Monitoring Function
Easy Drive From PC with Support Software MEXE02
By using the support software MEXE02, you can set and edit operation data and various parameters, as well as teach and monitor various conditions.
Click Here to Download the Support Software
Comprehensive Support From Start-up to Maintenance with a Variety of Functions
-
Startup and Evaluation
Useful functions for wiring check and test operation are provided.
- Setting and Saving of Operation Data
- I/O Monitoring
- Teaching, Remote Operation
-
Adjustment
The following functions are available to help you adjust motor operation after the equipment is installed.
- Waveform Monitoring
-
Diagnosis and Maintenance
Diagnostic and maintenance functions are available for trouble diagnosis and maintenance after operation is started.
- Alarm Monitoring
- Unit Information Monitor
- Status Monitor
