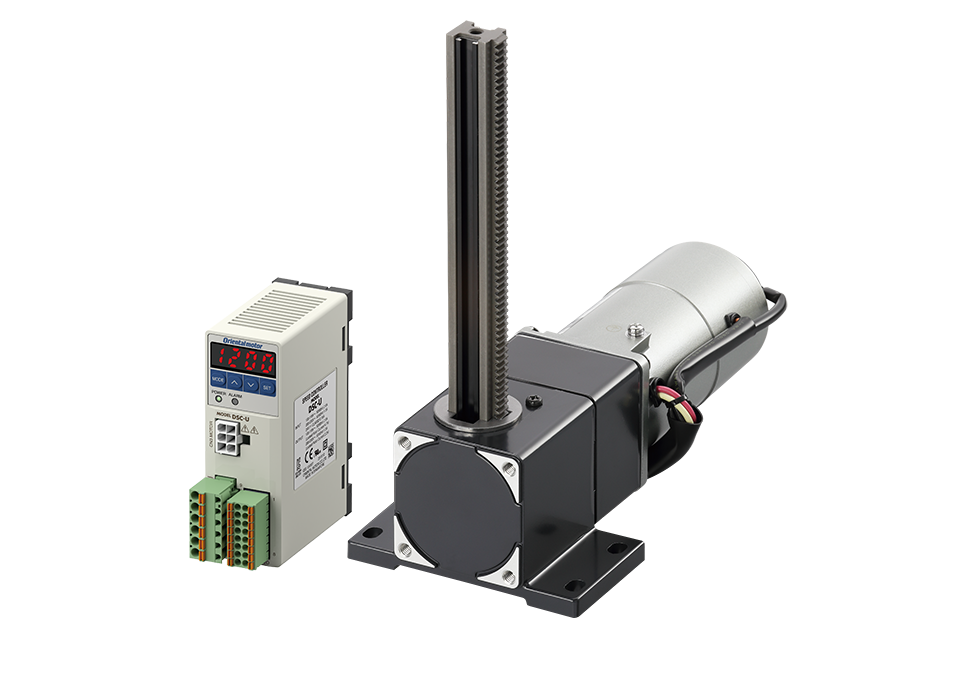

Features | Rack-and-Pinion System L Series AC Speed Control Motor DSC Series Equipped

Linear Motion Mechanism Can be Easily Constructed

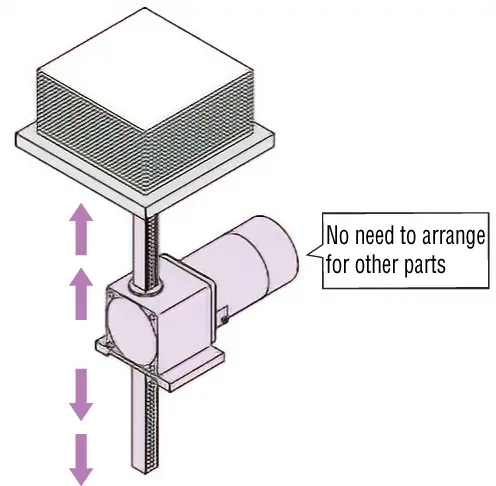

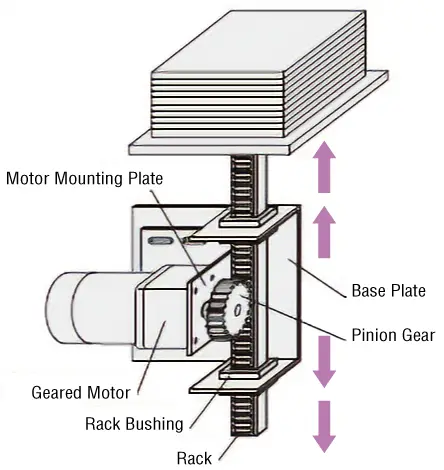

Easy Construction of Compact Linear Motion Mechanism

The rack-and-pinion system can easily convert the rotation of the motor into linear motion.
Although the linear motion mechanism part is compact in design, it can transport a large load due to its high strength processing.

Reduces Startup Time From Design

By using Oriental Motor's rack-and-pinion system, the number of components used can be reduced, significantly reducing the man-hours required for design and assembly compared to producing in-house.

Comparison of the Number of Components

•

•

Value Raise/Lower Speed Control

• Vertical Operation From 58,800 JPY

  Transportable mass of 6.6 kg~67 kg available, combining the simple structure rack-and-pinion system with AC speed control motors. Reasonable prices for transporting heavy loads.

  • Total amount for rack and pinion motor and speed controller.

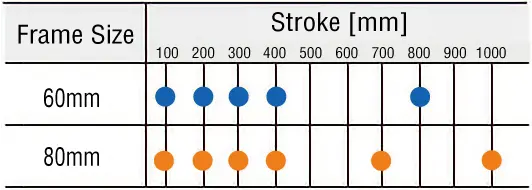

• Maximum Stroke 1000 mm

  A variety of strokes are available to suit your equipment.



3 Variable Speed Ranges Selectable According to Usage

Equipped with AC Speed Control Motor DSC Series that can control speed for vertical operation.
Choose from 3 variable speed ranges for each frame size.

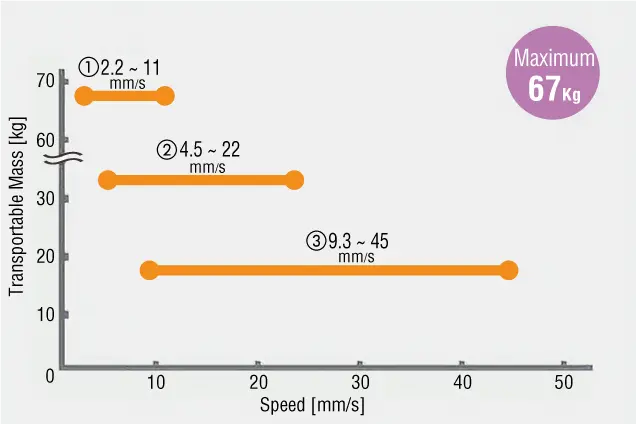

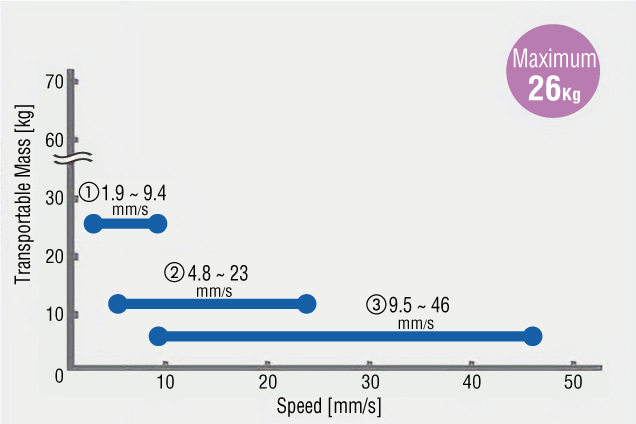

Transportable Mass and Variable Speed Range (For 60 Hz)

•

•

Compact Speed Controller Provides Comfortable Speed Control of Linear Motion Mechanism

Visualization of Linear Motion With Digital Display

Controller body allows monitoring of rack speed, alarm, warnings, and I/O status, as well as various settings and controls.

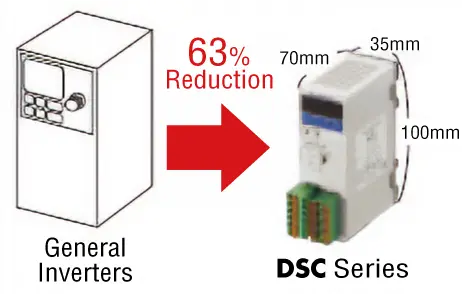

• Compact Motor Controller

  The volume is 63 % smaller than a general inverter.

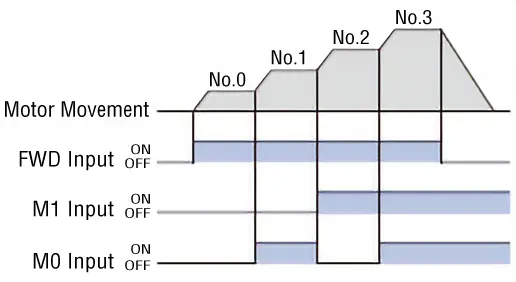

• Speed Control (4 speeds)

  4 units of operation data can be set, and can be switched with I/O during operation.

  Watch video (For combined motor and gearhead）

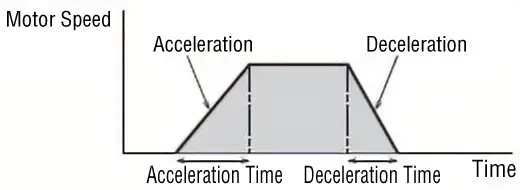

• Acceleration/Deceleration

  Makes the motor movement at start/stop smoother. It is possible to set acceleration/deceleration differently for each of the 4-speed data units.

  Watch video (For combined motor and gearhead）

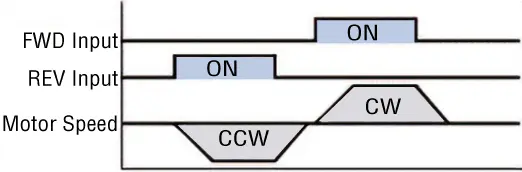

• Bi-Directional Operation

  Performs the operation according to the command for rotation direction.

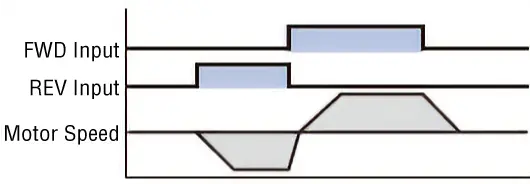

  Instantaneous Bi-Directional Operation

  Instantaneously switches the rotation direction of the motor while operating.
  (Short cycle change conditions can be created)

  Repetitive Operating Cycle



  Repetitive Operating Cycle

  When the motor is operated repeatedly in short cycles, use the cycles below as a reference, and ensure that the motor's external temperature is at 90° C or less.

  Instantaneous Stop	6~40 W	When operation and instantaneous stops are repeated 2 seconds min., operating duty 50 % max. (Example: 1 second operating, 1 second stopped)
  	60 W, 90 W	When operation and instantaneous stops are repeated 4 seconds min., operating duty 50 % max. (Example: 2 second operating, 2 second stopped)
  Instantaneous Bi-Directional Operation	6~40 W	When rotation direction is repeatedly switched during operation Switch once every 2 seconds min.
  	60 W, 90 W	When rotation direction is repeatedly switched during operation Switch once every 4 seconds min.

  • *On the electromagnetic brake type, continuous operation conditions occur when the "deceleration control" parameter is set to ON.
    Check "Common Specifications - Permissible Continuous Operation Time While Deceleration Control is ON" on each product details page of electromagnetic brake type.

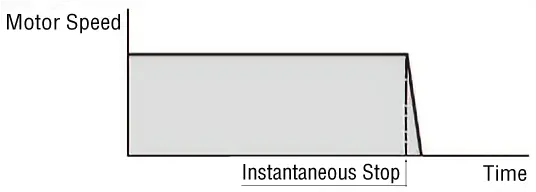

• Instantaneous Stop

  Stops the operating motor instantaneously.
  (Short cycle run/stop conditions can be created)

  Watch video (For combined motor and gearhead）



• External Speed Setting Input is Possible

  Watch video (For combined motor and gearhead）



• Multi-Motor Control (20 units max.)

  A single external speed potentiometer can operate a max. of 20 units in parallel.
  Fine adjustment of each motor's speed can be performed by changing the controller's parameters.



• Speed Range Control

  It is possible to limit the speed setting in advance with the speed range.



The rack-and-pinion system, which can be applied to a variety of applications, is a user-friendly product that can be selected as if it were a component.

By changing the mounting surface, it is possible to switch usage to either horizontal or vertical operation.

•

  Vertical operation is also easy. With an electromagnetic brake, fall prevention and load holding is allowed.

•

  Using the screw holes at the end of rack simplifies the fastening of loads and rack fixing.

•

  High thrust can also be used to lift the press or table as is.

•

  The open/close speed can be freely adjusted, even where a heavy door is opened or closed vertically.
