Robots and Controllers

Narrowing Down Robot Controllers

This controller can control the compact industrial robot OVR with its arm combined with an αSTEP AZ Series motor and robots configured with the AZ Series, including OVR. It is also easy to set up for operation and is suitable for promoting automation in areas where regular industrial robots are too large, or the total costs are too great.

Robots and Controllers
Series List

Small Robots OVR

Articulated Robot

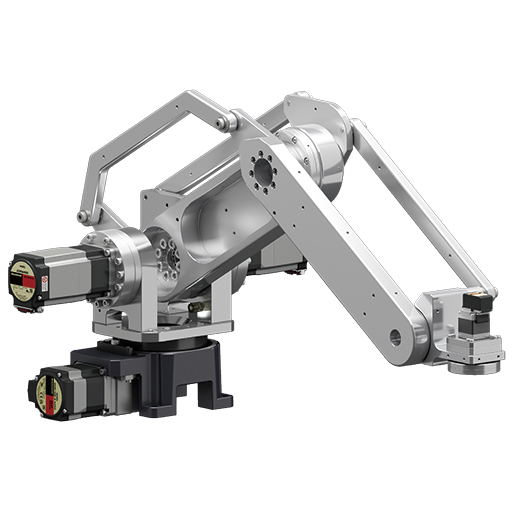

4-Axis Articulated Robot

4-Axis Articulated Robotト
  • Parallel Link Mechanism
  • Horizontally Level at All Times to Allow for Stable Transport of Components
  • Maximum Payload 5 kg
  • Maximum Reach (Horizontal) 480/680/880 mm

5-Axis Articulated Robot

5-Axis Articulated Robot
  • Body Mass 12.5 k5kg
  • Maximum Reach (horizontal) 350 mm, Payload 1 kg
  • Drive Motor: AZ Series with battery-free built-in absolute encoder (DC input)

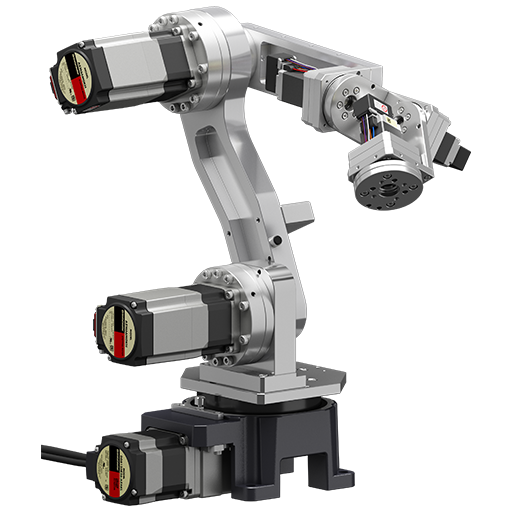

6-Axis Articulated Robot

6-Axis Articulated Robot
  • Capable of Approaching the Load From Any Angle
  • Body Mass 12.5 kg
  • Maximum Reach (Horizontal) 480 mm, Payload 1 kg
  • Drive Motor: AZ Series with battery-free built-in absolute encoder (DC input)

SCARA Robot

3-Axis SCARA Robot

3-Axis SCARA Robot
  • Able to Approach Tight Spaces
  • Lightweight and Flat, With a Mass of 7.6 kg and a Height from 137 mm
  • Maximum Reach 410mm/460mm/700mm, Payload 3 kg to 10 kg
  • The 3rd Arm Can be Freely Customized to Fit the Equipment

Cartesian Robot

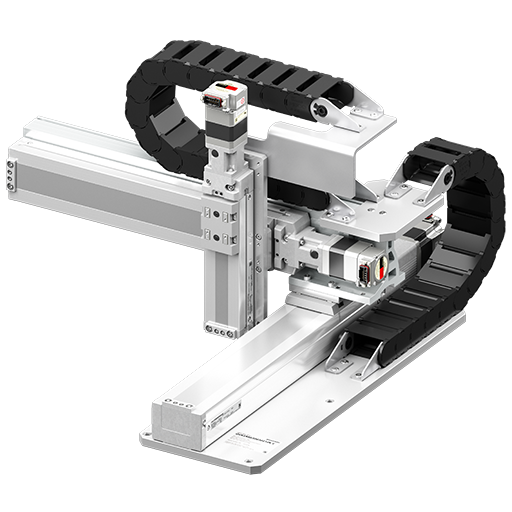

3-Axis Cartesian Robot

3-Axis Cartesian Robot
  • The Three Axes of Electric Linear Slide Delivered Assembled
  • Movable Range 300 mm x 300 mm x 100 mm (X-Y-Z), payload 2.5 kg
  • Easy Operation With Dedicated Controller and Programming Software
  • Reduced Time for Equipment Design, Assembly, and Start-U

Controllers

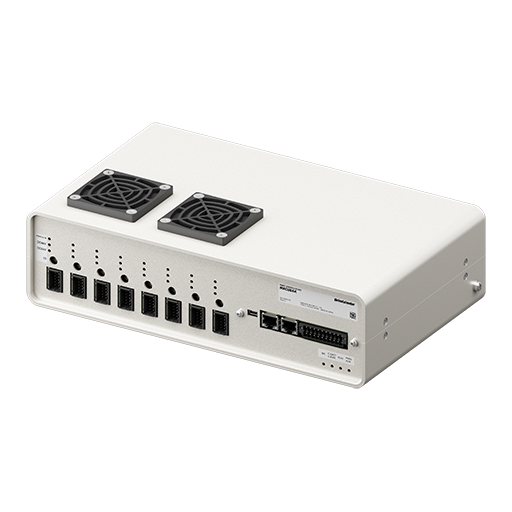

Robot Controller Unit MRCU

MRCU
  • Robot Controllers and AZ Series Drivers (up to 8 axes) in One Package
  • Compact Size like A4
  • Easy Wiring Reducing the Risk of Incorrect Wiring

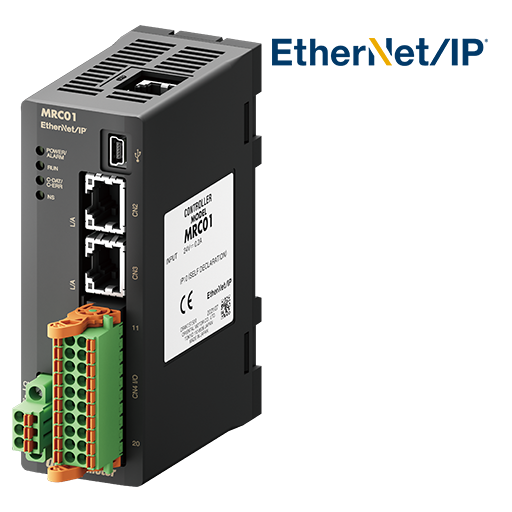

Robot Controller MRC01

MRC01
  • Easy Introduction and Control of Robots
  • Easy Setup with Programming Software
  • Dedicated, Low-Cost Controller for Cartesian Robots

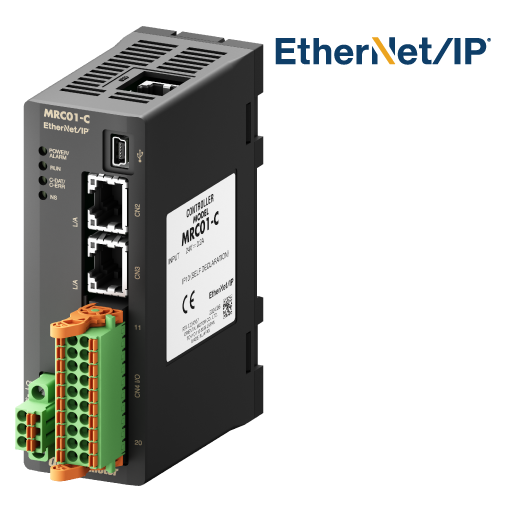

Robot Controller MRC01-C

MRC01-C
  • Easy Introduction and Control of Robots
  • Easy Setup With Programming Software
  • Dedicated, Low-Cost Controller for Cartesian Robots

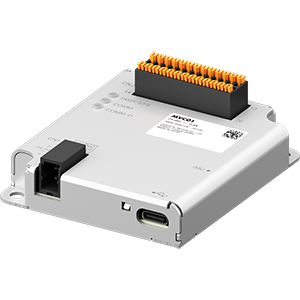

Mobile Robot Controller MVC01

MVC01
  • Equipped With a Driving Control Function for AGV/AMR Transport Robots
  • Support From Start-Up to Maintenance With Dedicated PC Software
  • Output Gyro Odometry With Built-In IMU
  • Can be Combined With BLV Series R type

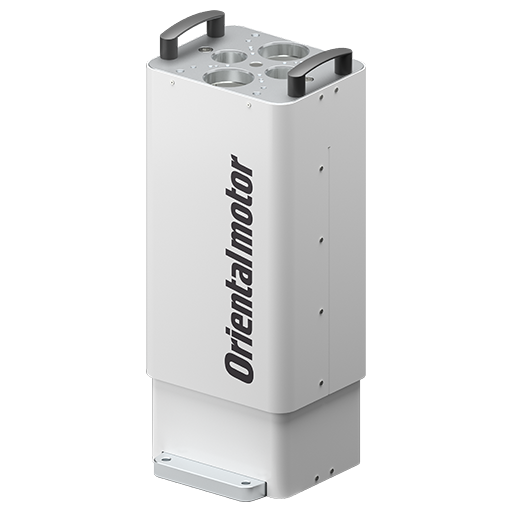

Electric lifting columns EL Series

Electric lifting columns EL Series

ELシリーズ
  • Lifting columns that expand the operating range for robots
  • Shorten equipment design, assembly, and start-up time
  • High rigidity and high accuracy
  • Stroke 50/100/200/300 mm
