Other Accessories: Flange Drive Adapter

The flange drive adapter is a product that increases the permissible load by mounting on a parallel shaft gearhead.

When retrofitted to a parallel shaft gearhead, the permissible radial load and permissible axial load are significantly increased compared to those of the gearhead alone. Wheels and rotary tables can be directly mounted on rotating mechanisms easily, contributing to reduced design times.

Flange Drive Adapter + BLV

Flange Drive Adapter

Product Name Applicable Product
Gearhead Series Output Power
Flange Drive Adapter
AGD580B Parallel shaft gearhead BMU Series
BLE2 Series
BXII Series
120 W
BLV Series R Type
BLV Series
BLH Series
100 W

Features

  • Dramatic increases in permissible load
  • Easy Installation
  • Simplified Design
  • For Applications Involving Rotating Heavy Objects

Dramatic Increases in Permissible Load

High permissible load is achieved by adopting a cross-roller bearing for the bearings.
When combined with a motor (gearhead), the permissible radial load and permissible axial load are greatly increased, allowing for the capability of handling of loads larger than with the gearhead alone.

  • Flange Drive Adapter
  • Flange Drive Adapter

Easy installation

Installation work is simplified because they can be attached directly to the load shaft and directly to the enclosure

Simplified design

Thanks to the integration with cross-roller bearings, load mounting tables, etc., the time to arrange extra parts and mechanism design is reduced.

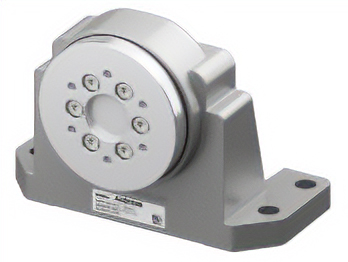

Flange Drive Adapter

For applications involving rotating heavy objects

The increased permissible load makes transportation of heavy objects possible for automated guided vehicles and rotary tables.

AGV (Automated guided vehicle)

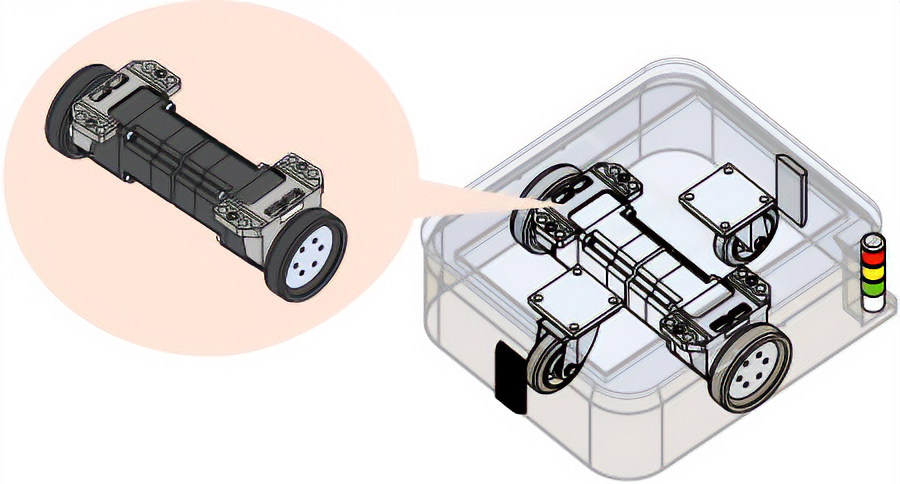

Applications: Automated Guided Vehicle

Rotary Table and Arm Drive

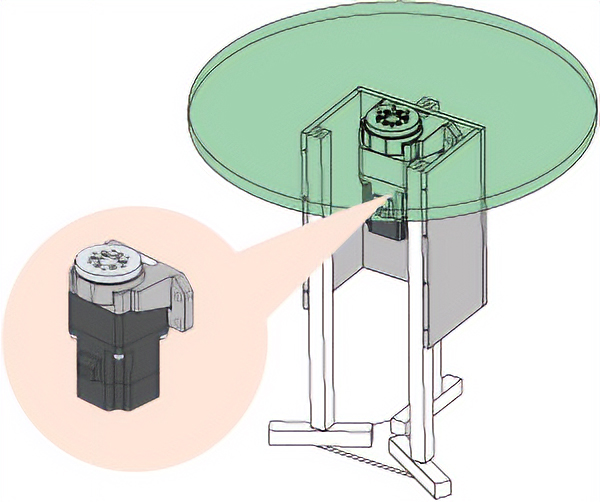

  • Applications: Rotary table
  • Applications: Arm drive
