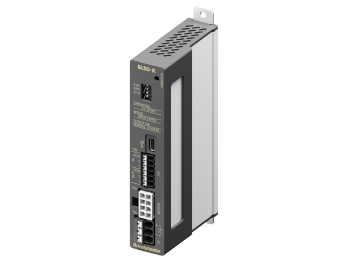

Brushless Motors BLS Series
BLSD-K
Control Circuit
| Product Classification | Product Name | CIF: List Price | FOB: List Price | Shipping Date |
|---|---|---|---|---|
| Control Circuit | BLSD-K | MYR 687 | MYR 502 | 14 Working Days |
Included
- Control Circuit: None
Specifications

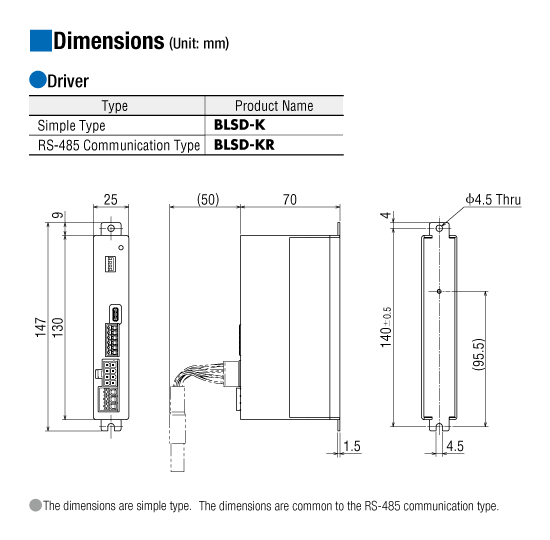

Dimensions
Data Download
Other Specifications
Common Specifications
| 項目 | BLSD-K | BLSD-KR | |
|---|---|---|---|
| Operating Data |
Rotation Speed | 25 W、40 W、90 W: 100–2000 r/min 30 W、60 W、120 W: 100–4000 r/min The factory default is set to the following rotation speeds. 1500 r/min (when "Function Setting Switch: SPD(SPEED)" is set to "SPD0") 1800 r/min (when "Function Setting Switch: SPD(SPEED)" is set to "SPD1") |
25 W、40 W、90 W: 100–2000 r/min 30 W、60 W、120 W: 100–4000 r/min Factory Default: 0 r/min |
| Acceleration Time and Deceleration Time |
100–30000 ms (Factory Default: 1000 ms) | ||
| Torque Limiting | 0.0–1000.0 % (Factory Default: 1000.0 %) | ||
| Setting Method | Support softwareMEXE02 | RS-485 communication,Support softwareMEXE02 | |
| Input Signal | Input 2 points Photocoupler input method 24 VDC (-15 to +20 %) |
||
| Output Signal | Output 2 points Photocoupler and open-collector output 4.5 to 30 VDC, current less than 10 mA |
||
| Information | When information is generated, the INFO output turns ON and the PWR/SYS LED blinks blue. The motor will continue to operate. |
||
| Alarm | When an alarm occurs, the ALM-B output is turned OFF and the motor stops. At the same time, the PWR/SYS LED blinks red. |
||
| Maximum Extension Distance | Motor and driver distance 10.5 m (When a sold separately connection cable is used) | ||
| Time Rating | Continuous | ||
General Specifications
| Item | Specifications | |
|---|---|---|
| Insulation Resistance | After continuous operation at normal ambient temperature and humidity, the measurement value between the heat sink and the power supply input terminal is 100 MΩ min. using a 500 VDC megger. | |
| Dielectric Strength | No abnormality is observed even with an application of 50 Hz, 0.5 kVAC between the heat sink and the power supply input terminal for 1 minute after continuous operation at normal ambient temperature and humidity. | |
| Temperature Rise | After rated continuous operation at normal ambient temperature and humidity, the measurement value of the temperature rise of the heat sink is 50 °C max. using the thermocouple method. | |
| Operating Environment | Ambient Temperature | 0 to +50 °C (Non-freezing)*1 |
| Ambient Humidity | 85 % max. (Non-condensing) | |
| Altitude | Up to 1000 m above sea level | |
| Atmosphere | No corrosive gases or dust. Should not be exposed to water or oil. Cannot be used in a radioactive area, magnetic field, vacuum, or other special environments. | |
| Vibration | Must not be subjected to continuous vibration or excessive shock. Conforms to JIS C 60068-2-6, "Sine-Wave Vibration Test Method" Frequency Range: 10 to 55 Hz, Half Amplitude: 0.15 mm, Sweep Direction: 3 directions (X, Y, Z), Number of Sweeps: 20 times |
|
| Storage Conditions*2 | Ambient Temperature | -25 to +70 °C (Non-freezing) |
| Ambient Humidity | 85 % max. (Non-condensing) | |
| Altitude | Up to 3000 m above sea level | |
| Atmosphere | No corrosive gases or dust. Should not be exposed to water or oil. Cannot be used in a radioactive area, magnetic field, vacuum, or other special environments. | |
| Thermal Class | − | |
| Degree of Protection | IP20 | |
- *1
- When drivers are installed in a close contact state, operate at an ambient temperature of 0 to +40 °C.
- *2
- The value for storage condition applies to short periods such as the period during transport.
Note
- Do not measure insulation resistance or perform a dielectric strength test while the motor and driver are connected.
Standards
Speed - Torque Characteristics
Regulations and Standards Materials
Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)
Explanations of the Global Laws, Regulations and Standards can be found here.
Information about our compliance with safety standards for each of our product models can be found here.
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
