Educational Robot
Motion System Master
- Inexpensive 3-axis small tabletop robot to start teaching and learning robotics
- Structural learning and easy programming using command icons
- Installation area ϕ16 cm, body mass 4.2 kg
- Maximum reach (horizontal) 390 mm*, payload 1 kg, repetitive positioning accuracy ±0.1 mm
- Shipment within a short lead time of just 20 working days
- *Arm lengths are customizable.
Features | Industrial Training Robot Motion System Master
- Inexpensive Industrial Training 3-Axis Small Tabletop Robot Arm That Enables Learning From Both Mechanical and Software Aspects
- Robot Structures Useful for Teaching, Learning, and Research
- Easy Programming Even for Beginners
- List Price and Shipment Within a Short Lead Time of Just 25 Working Days
- Specifications
- Dimensions/Motion Range Diagram
- Various Data
- Before Use
- Related Products (Small Robots OVR)

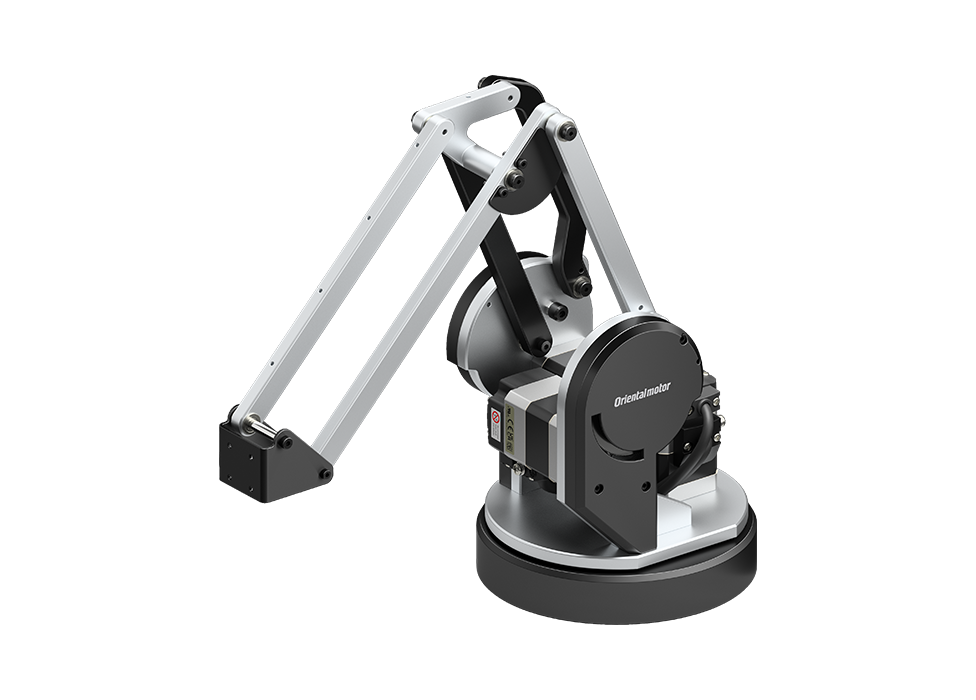

Inexpensive Industrial Training 3-Axis Small Tabletop Robot Arm That Enables Learning From Both Mechanical and Software Aspects
The Industrial Training robot Motion System Master is a set of teaching robots for technical high schools, higher education institutions, and manufacturing professionals to learn the elements of industrial robots from mechanical and software aspects.
The main body of the robot is structed with parts exposed for learning the structure and mechanism. On the software side, no-code programming using command icons allows you to quickly achieve the desired movement. This is an industrial Training robot for beginners with a compact and lightweight design that can be used in various places like a tabletop. By keeping the price, designed to be widely used in robot human resource education.
Solves Issues Like:

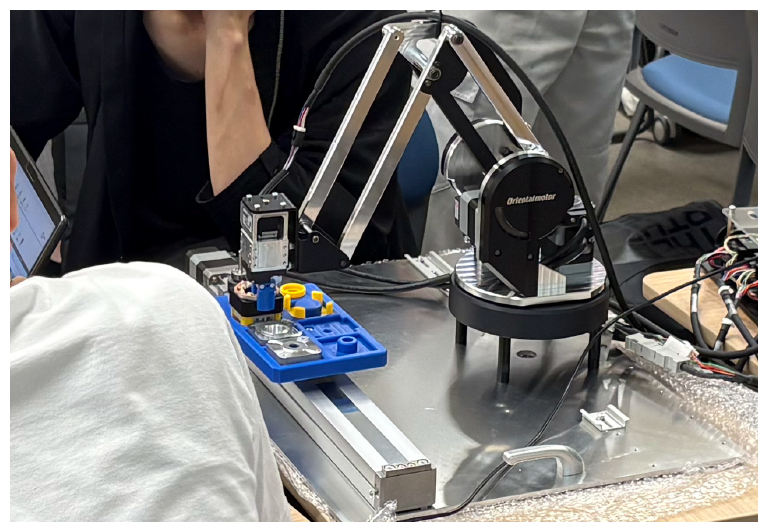

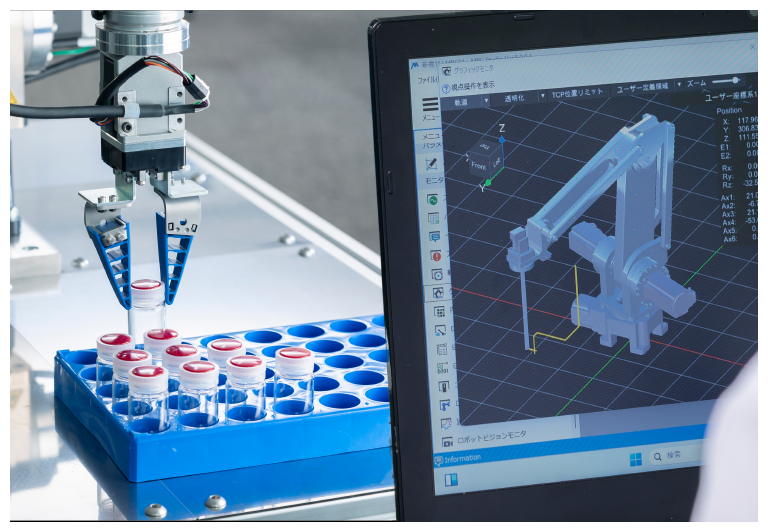

- To create an environment, can operating the actual equipment by ourselves rather than a simulator
- General industrial robots are expensive, and multiple units cannot be introduced, so an alternative solution is required in terms of education opportunities for all members
- To deepen our learning by interacting with machine elements hands-on, however existing industrial training robot kits do not allow us to experience machine design
Robot Structures Useful for Teaching, Learning, and Research
- Installation area ϕ16 cm, body mass 4.2 kg
- Maximum reach (horizontal) 390 mm*, payload 1 kg, repetitive positioning accuracy ±0.1 mm
- *Arm lengths are customizable.
Note
The motor of each axis is not equipped with an electromagnetic brake. When the power is turned off, the output shaft becomes non-excited and loses its holding force. Please handle with care.

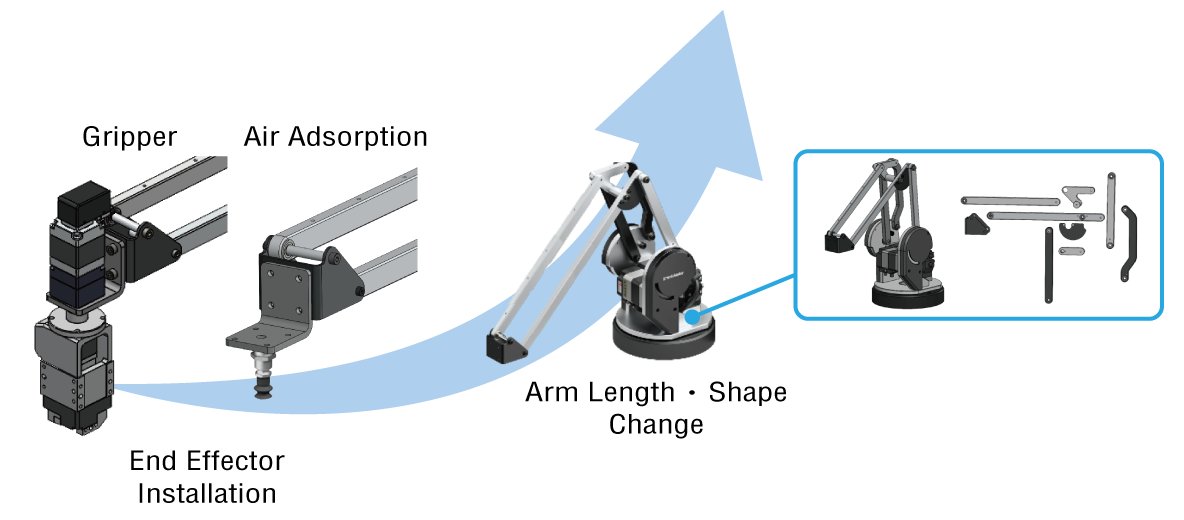

The Robot Arms Can Be Replaced or Customized, and the End Effectors Can Be Rearranged.
Arm parts can be replaced. The movable range can be expanded by customizing the length and shape of the arm.

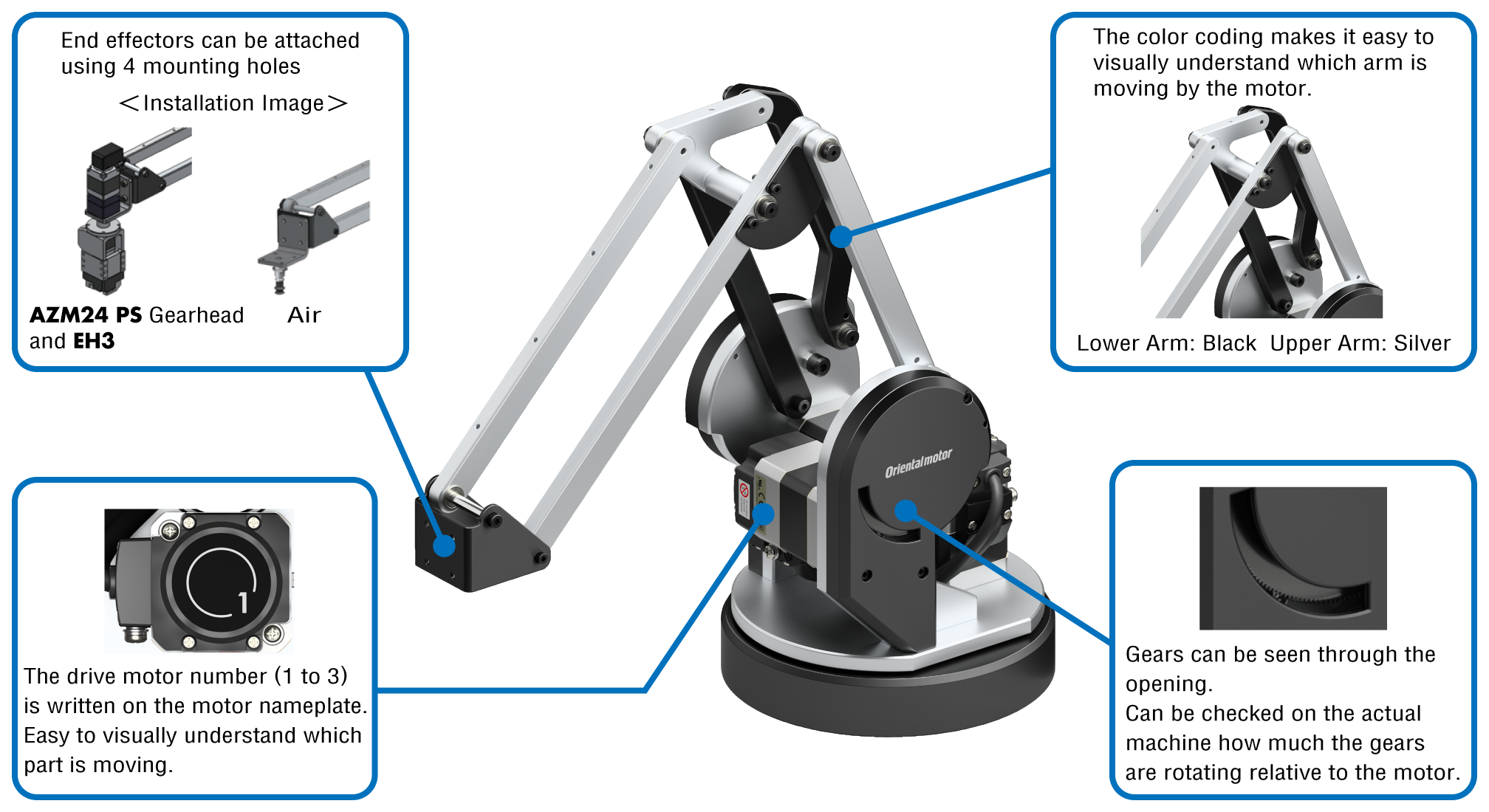

The end effector can be easily attached, allowing the user to create an original robot by reassembling a wide variety of parts.
Uses Industrial Motor, Driver and Controller
Uses industrial motor, driver and controller. Delivers high reliability and stable operation, even as industrial training material.

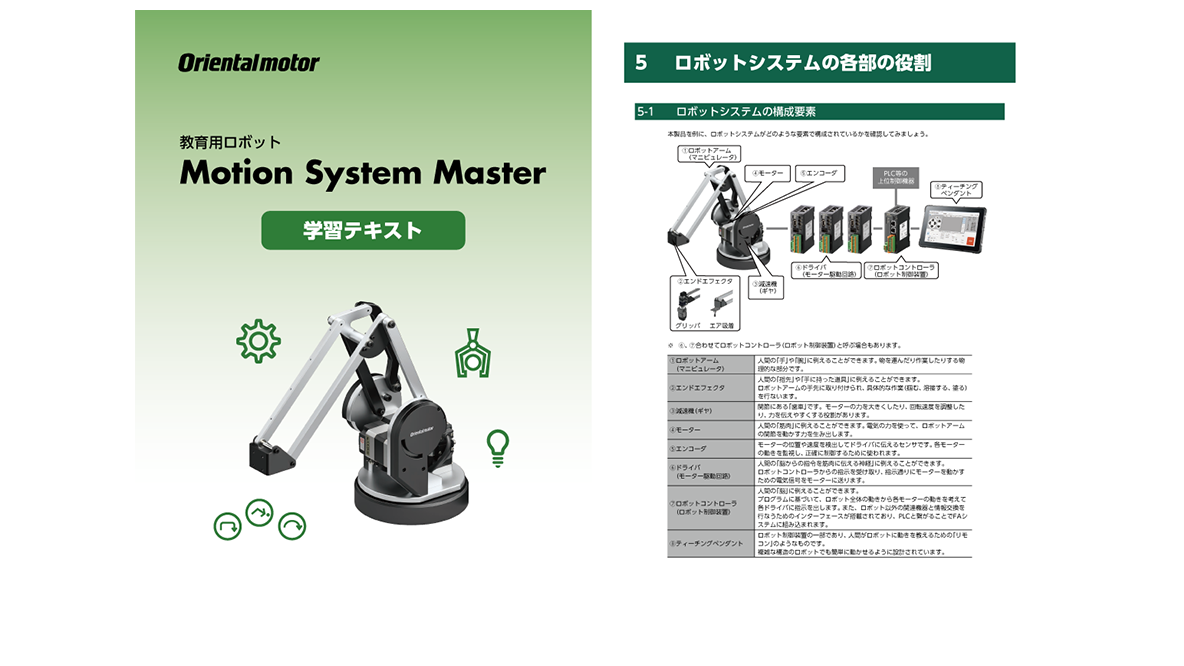

Study Text Provided
For those beginning to learn robotics with Motion System Master, we provide textbooks that teach basic knowledge of industrial robots, programming, and more.
Easy Programming Even for Beginners

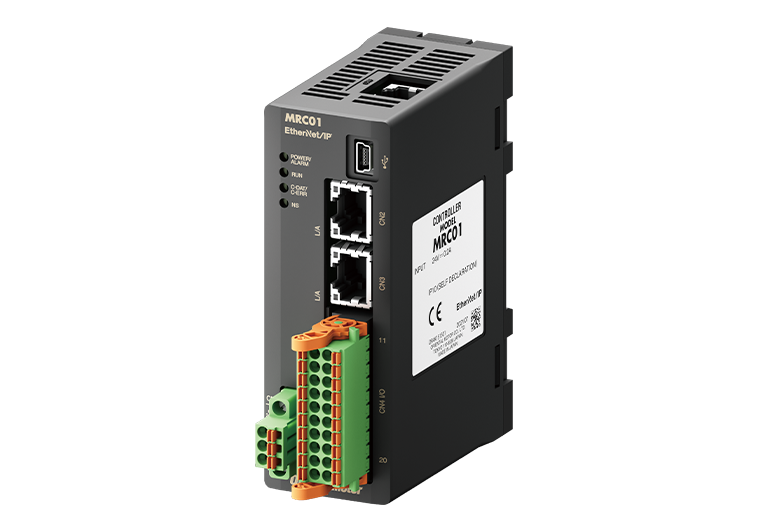

The MRC01 is a robot controller that can control robots equipped with the AZ Series.
The programming software MRC Studio (free of charge) is so simple that even those inexperienced in controlling robots can master it quickly.
The same programming software as the small industrial robot OVR can be used to control, so the skills acquired through learning can be applied directly in the field.
Set Price of < below RM25,000, Shipment Within a Short Lead Time of Just 25 Working Days

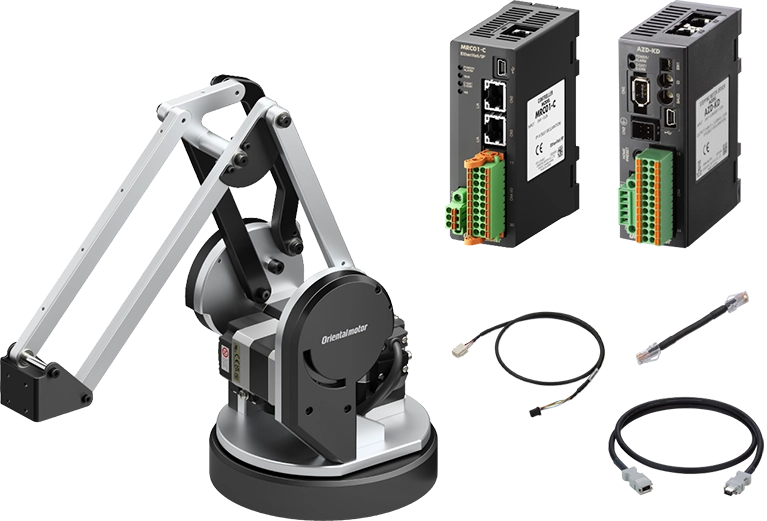

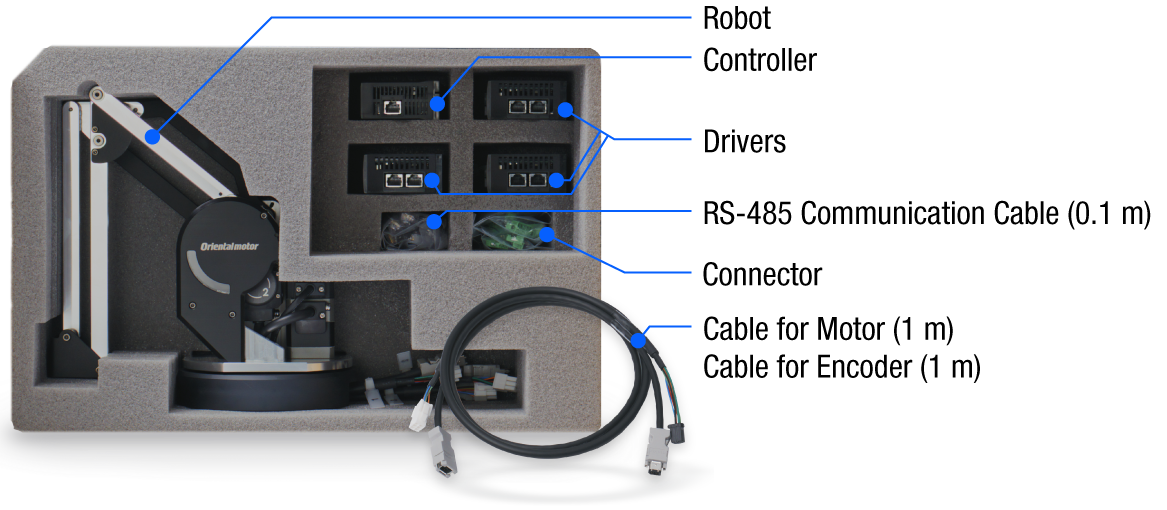

TThe industrial training robot Motion System Master is available as set product name MSER-V. This helps keeps the cost of introducing robot education low.
Furthermore, it can be shipped with a short lead time of just 25 working days. We meet your needs for using it right away.
- Set Product Name: MSER-V
- List Price: RM 22,598
- ● Robots can also be purchased individually. MSE3039K1-V: RM 13,523 (List price)
- ● Additionally, DC power supply and end effector are required.
Specification
| Number of Axes | 3-axis | |
|---|---|---|
| Input Voltage | 24 VDC | |
| Maximum Reach | Vertical | 352 mm |
| Horizontal | 390 mm | |
| Payload | 1 kg | |
| Movable Range* | S-axis (Rotation) | ±100 deg. |
| L-axis (Lower arm) | 0~90 deg | |
| U-axis (Upper arm) | 0~100 deg | |
| Repetitive Positioning Accuracy | ±0.1 mm | |
| Body Mass | 4.2 kg | |
- *This is the range of operation for an installation origin posture with the positioning pin in the origin pin hole.
- ● Recommended power supply capacity: 24 VDC 150 W
Dimensions/Motion Range Diagram
Dimensions (Unit: mm)
Motion Range Diagram (Unit: mm)
Various Data
| Brochure | R-4 |
|---|---|
| Technical Reference | Industrial Training Robot Motion System Master |
| 3DCAD | R017.zip |
| 2DCAD | R017.dxf |
Before Use
This product is designed for the purpose of learning about robot mechanisms and control. Do not use for any other purpose.
Oriental Motor Group is not responsible for any compensation for damage caused through failure to observe this warning.
Related Products to Small Robots OVR
Simple, compact, lightweight industrial robot that is configured with the αSTEP AZ Series motor equipped with battery-free absolute encoder.
Controlled by the intuitive robot controller MRC01, automation using multi-axis robots can be achieved with ease.
Some motors can be replaced by the customer, reducing maintenance costs.

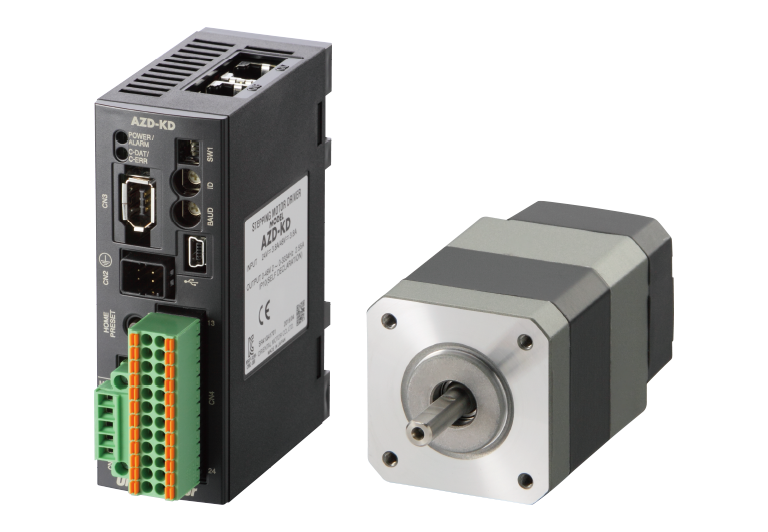

- ●To drive the robot, drivers according to the number of motor axes in the robot and a robot controller MRC01 are required separately.

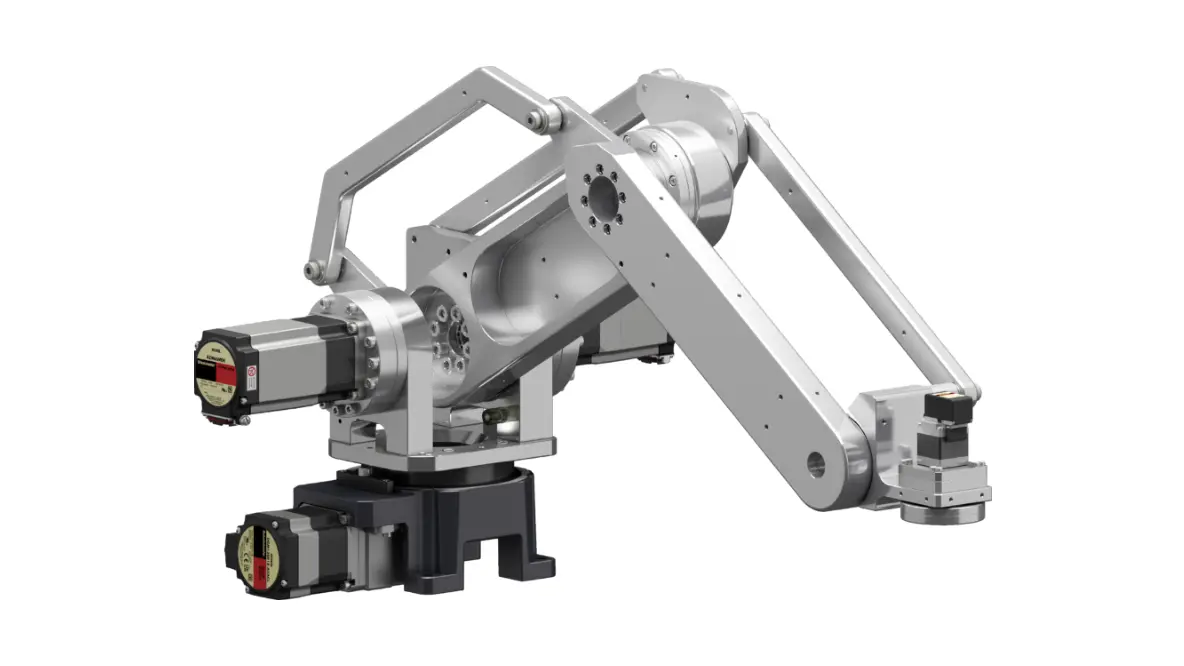

4-Axis Articulated Robot
Maximum Payload: 5 kg
Maximum Reach (Horizontal): 480 mm, 680 mm, and 880 mm (Three types)
- Stable transport of load in a constant horizontal state
- Body mass 16.5 kg, 17.4 kg, 26.9 kg

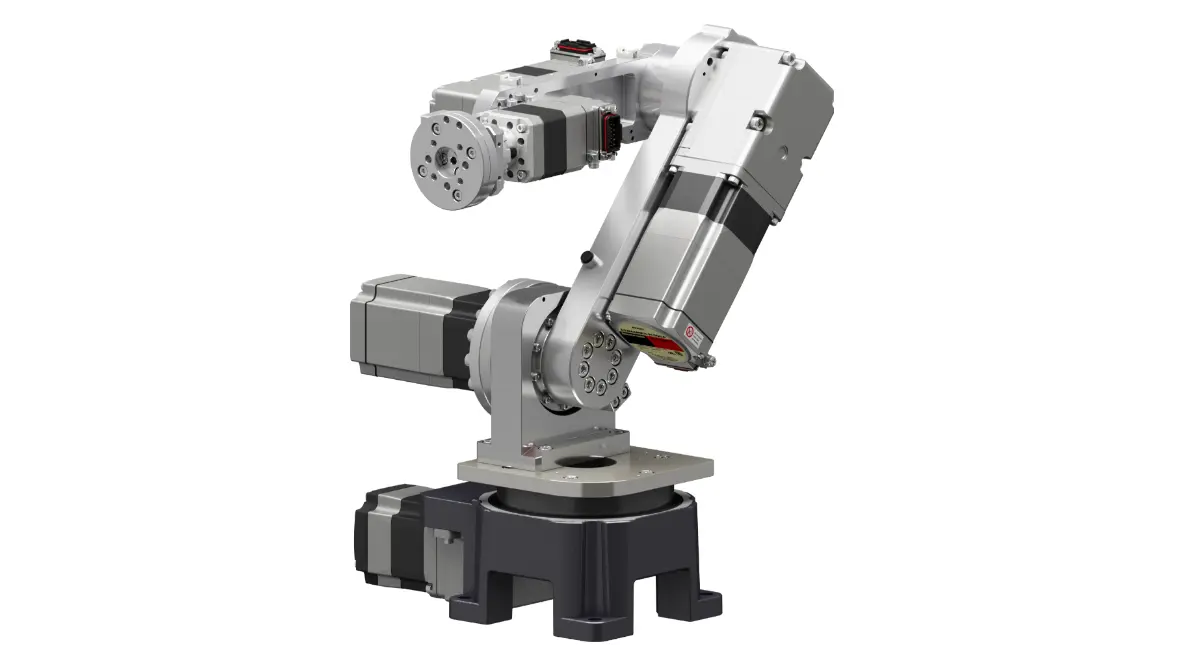

5-Axis Articulated Robot
Maximum Payload: 1 kg
Maximum Reach: 350 mm (Horizontal)
- Customizable in combination with electric linear slides
- Body mass 12.5 kg

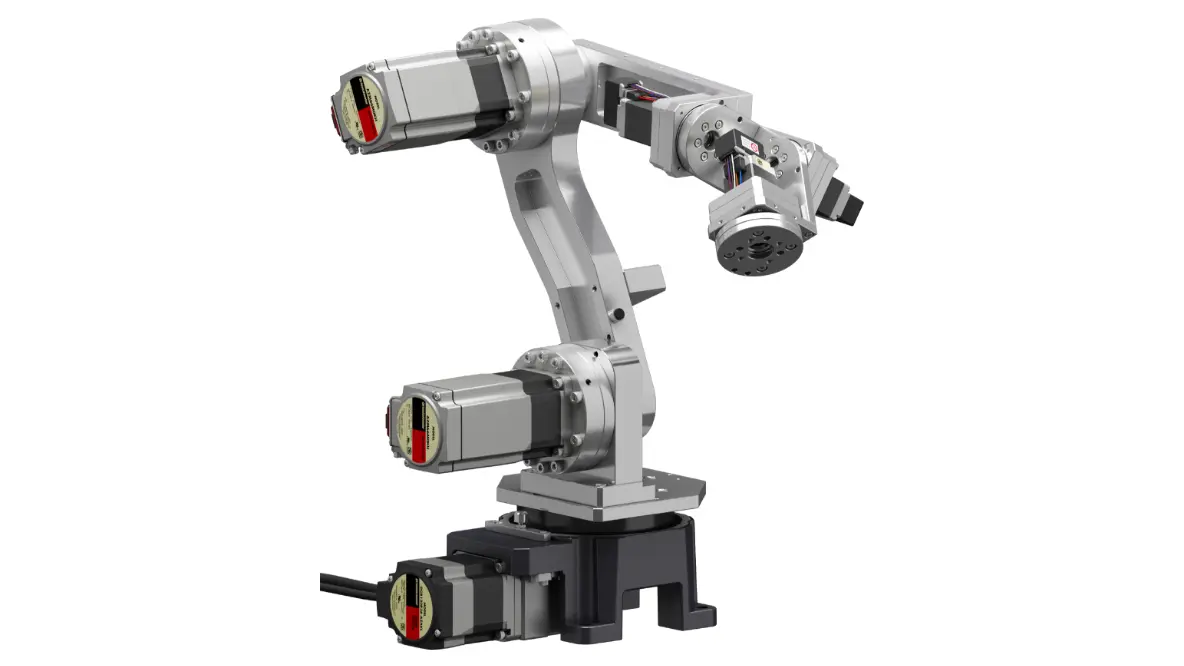

6-Axis Articulated Robot
Maximum Payload: 1 kg
Maximum Reach: 480 mm (Horizontal)
- Approaches load from various angles
- Body mass 12.5 kg

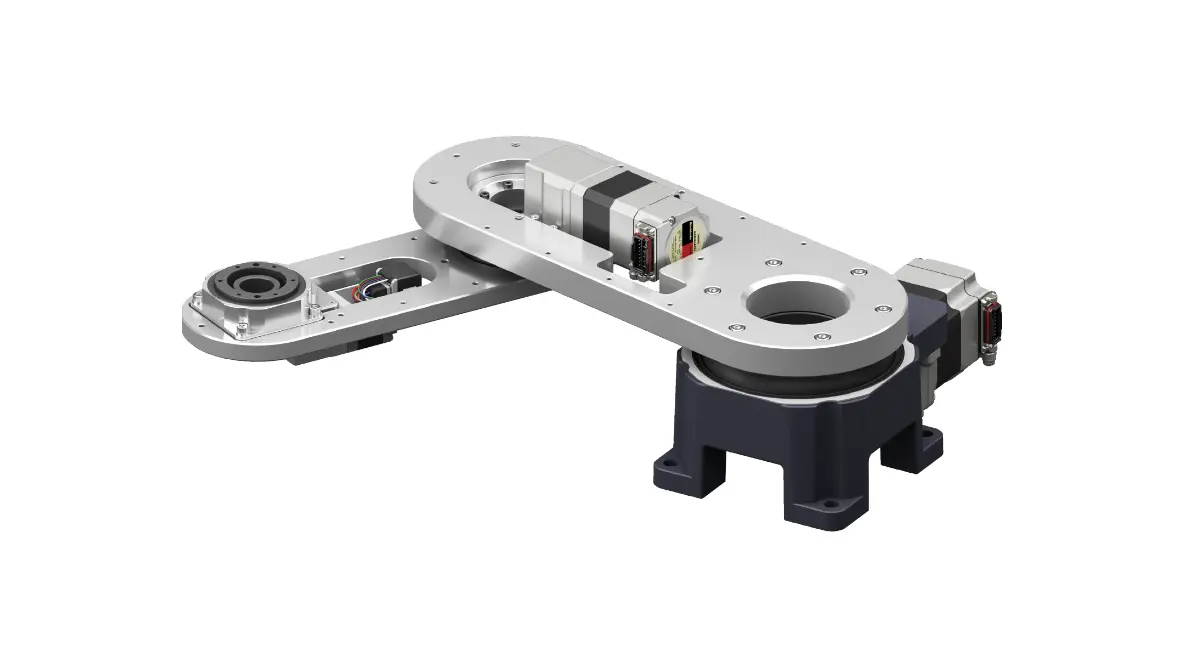

3-Axis SCARA Robot
Maximum Payload: 10 kg
Maximum Reach: 410 mm, 460 mm, and 700 mm (Three types)
- Flat SCARA robot able to approach narrow spaces
- Body mass 7.6~8.9 kg

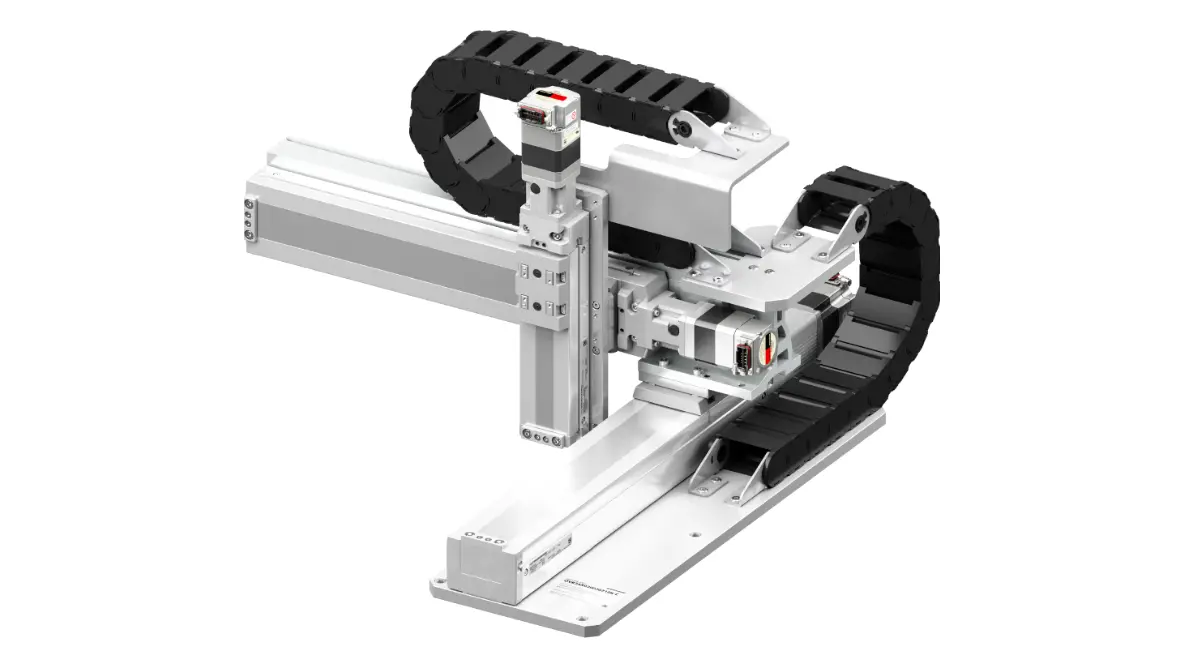

Cartesian Robot
