List of Cables for AC Motors

For AC Motors

Connection Cable

[1] Connection Cable for Terminal Box Type (with round terminals)

Cable with pre-crimped round terminals for immediate wiring inside the terminal box. Machined to the optimum length for wiring inside the terminal box.

For Induction Motors and Reversible Motors

Connection Cable
Applicable Motors Product Name Length (m) Cable, Specifications
Product Line Series Power Supply
Induction Motors KIIS Series
KII Series		 Three-Phase CC010TA04B 1 Cable outer diameter Φ10.9 mm
Cable cores AWG18
  • For motor x 3 pcs.
  • For protective grounding × 1 pc.
CC020TA04B 2
CC030TA04B 3
CC050TA04B 5
CC100TA04B 10
CC200TA04B 20
Induction Motors
Reversible Motors		 KII Series Single-Phase CC010TA04A 1
CC020TA04A 2
CC030TA04A 3
CC050TA04A 5
CC100TA04A 10
CC200TA04A 20

For Electromagnetic Brake Motor

Connection Cable
Applicable Motors Product Name Length (m) Cable, Specifications
Product Line Series Power Supply
Induction Motors KIIS Series Three-Phase CC010TA06B 1 Cable outer diameter Φ10.9 mm
Cable cores AWG18
  • For motor x 3 pcs.
  • For electromagnetic brake x 2 pcs.
  • For protective earth × 1 pc.
CC020TA06B 2
CC030TA06B 3
CC050TA06B 5
CC100TA06B 10
CC200TA06B 20
Induction Motors KII Series Single-Phase CC010TA06A 1
CC020TA06A 2
CC030TA06A 3
CC050TA06A 5
CC100TA06A 10
CC200TA06A 20

[2] Connection Cable (without terminal treatment)

Cable for wiring three-phase and single-phase motors. Can also be used for terminal box wiring.

Connection Cable

For Induction Motors, Reversible Motors, Torque Motors, and Low-Speed Synchronous Motors

Applicable Series Cable, Specifications Product Name Length (m)
KIIS Series
KII Series
K Series
(except with small terminal box)
World K Series
BH Series
TM Series
SMK Series		 Cable outer diameter Φ10.9 mm
Cable cores AWG18
  • For motor x 3 pcs.
  • For protective earth × 1 pc.
 CC010G04 1
CC020G04 2
CC030G04 3
CC050G04 5
CC100G04 10
CC200G04 20

For Electromagnetic Brake Motor

Applicable Series Cable, Specifications Product Name Length (m)
KIIS Series
KII Series
K Series
(except with small terminal box)
World K Series
BH Series		 Cable outer diameter Φ10.9 mm
Cable cores AWG18
  • For motor x 3 pcs.
  • For electromagnetic brake x 2 pcs.
  • For protective earth × 1 pc.
 CC010G06 1
CC020G06 2
CC030G06 3
CC050G06 5
CC100G06 10
CC200G06 20

For Watertight, Dust-Resistant Motors

Applicable Series Cable, Specifications Product Name Length (m)
FPW Series
  • Cable outer diameter Φ7.8 mm
  • Cable cores AWG20 x 4
 CC05AC43P 5
CC10AC43P 10

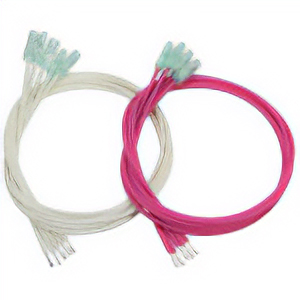

[3] Capacitor Connection Lead Wire

Lead wire with a crimp terminal that can be connected directly to capacitor terminals

Product Name Set Contents
Lead wire with a crimp terminal for connectors
LCCN0510 White: 5 pcs.
Red: 5 pcs.

Cable Note When Wiring Flexible Cable

Do not bend the cable at the connector. Stress applied to the connectors and terminals causes poor contact and disconnection.

How to Fix the Cable

Fix the connector part in 2 places to prevent it from moving.

Fix the connector part in 2 places to prevent it from moving.

Wiring Length and Bending Radius of the Cable

Wiring should be installed at an appropriate length, so that cables are not pulled during movement.
In addition, the bending radius (R) should be 6 times the cable diameter min.

Wiring should be installed at an appropriate length, so that cables are not pulled during movement.

Interference of the Cable

Wire the cables in the cable holder without bringing them into contact with each other. This will add stress to the cable, and cause it to break prematurely. Please check note on cable holders carefully before use.

Cable Kinks

◇Please wire without kinks in the cable. Kinking in a twisted state can cause premature disconnection. After wiring, confirm that there are no kinks in the cable, using the print on the cable surface as a reference.
