Mounting Brackets: Mounting Brackets for Circuit Products (for other mounting)
For Dedicated DIN Rail Mounting Circuit Products
This is a metal fitting for stand-alone installation of circuit products that are compatible with DIN rail installation only.
No horizontal direction movement or loosening.
Material: SPCC, Surface Treatment: Electroless nickel plating
| Product Name | Applicable Product | ||
|---|---|---|---|
| Classification | Series | ||
  |
MAFP02 | AC Speed Control Motors | DSC Series |
| Speed Controller MSC-1 | |||
| Speed Controller MSC-A | |||
| αSTEP | AR Series DC Input | ||
| AZ Series DC Input | |||
| Stepper Motors | CRK Series Built-In Controller Type | ||
| Controller | Network Converters | ||
| Electric Linear Slides | EAS Series (AR Series/AZ Series Equipped DC Input) |
||
| EZS Series (AR Series/AZ Series Equipped DC Input) |
|||
| EZS Series for Clean Room Use (AR Series/AZ Series Equipped DC Input) |
|||
| Electric Cylinder | EAC Series (AR Series/AZ Series Equipped DC Input) |
||
| Compact Linear Actuators | DRS2 Series | ||
| Hollow Rotary Actuators | DGII Series (AR Series equipped DC input) | ||
- ※Can also be used as a mounting bracket for a thermostat.
For DIN-rail-compatible circuit products [Larger image of application example]
Circuit products compatible only with DIN rail installation can be directly mounted without using DIN rail.

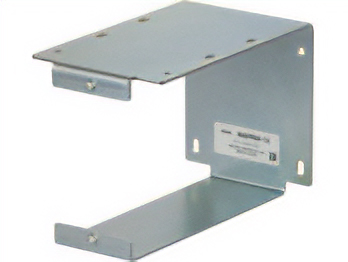

For Board-Mounted Circuit Products
A board-mounted circuit can be mounted directly on the top face, back face, or bottom face of the board.
- *Cannot be used with PCF12 dust and water resistant type front cover.
| Product Name | Materials, Surface Treatment |
Applicable Product | ||
|---|---|---|---|---|
| Brushless Motors | AC Speed Control Motors | |||
  |
MAFP04-15 | SPCC, Electroless nickel plating | BMU Series 30 W, 60 W, 120 W | US2 Series |
  |
MAFP04-12B | BMU Series 200 W, 400 W | - | |
For Conveyor Guide Mounting
This metal fitting can be used to mount board-mounted circuit products to conveyor guides. Can also be used to mount capacitors.
Material: SPCC, Surface Treatment: Electroless nickel plating
- *Cannot be used with PCF12 dust and water resistant type front cover and PAFC02 front cover.
| Product Name | Applicable Product | ||
|---|---|---|---|
| Brushless Motors | AC Speed Control Motors | ||
  |
MAFP05V | BMU Series 30 W, 60 W, 120 W |
US2 Series US Series |
For AZ Series Motor Mounting
This is a mounting bracket for enabling space-saving and wiring-saving installation of the motor and driver.
- *The screws for fastening the circuit product to the mounting bracket must be provided separately.
| Mounting Brackets for Circuit Products | Applicable Motors | Applicable Drivers | Applicable Cables | |||||
|---|---|---|---|---|---|---|---|---|
| External View | Product Name | Connection Methods | Frame Size （mm） |
Type | Power Supply Voltage （V） |
Type | Cable Outlet Direction | Length （m） |
  |

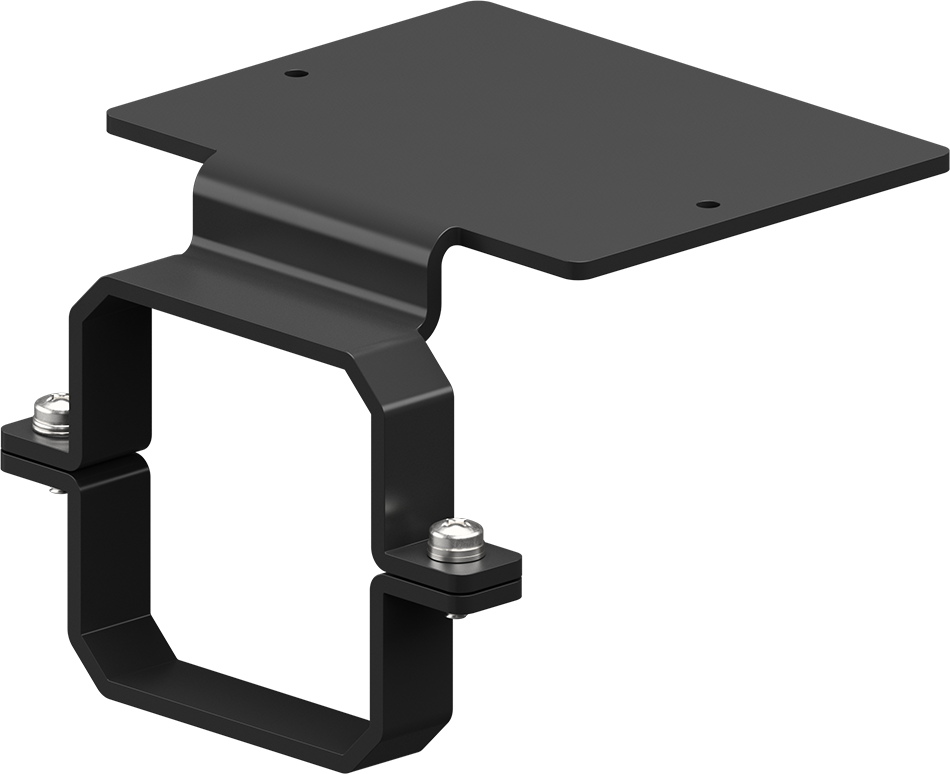

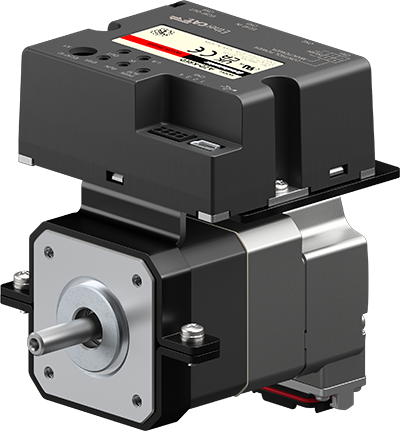

MAFP06W-4 | Connector Type | 42 | Standard TS Geared PS Geared Harmonic Geared |
DC24/48 | EtherCAT Compatible EtherNet/IPTMCompatible PROFINET Compatible Ethernet Pulse Input With RS-485 Communication |
|
0.2 |
| 0.5 | ||||||||
| 1 | ||||||||
| 2 | ||||||||
| 3 | ||||||||
| 5 | ||||||||
| 7 | ||||||||
| 10 | ||||||||
|
0.5 | |||||||
| 1 | ||||||||
| 2 | ||||||||
  |

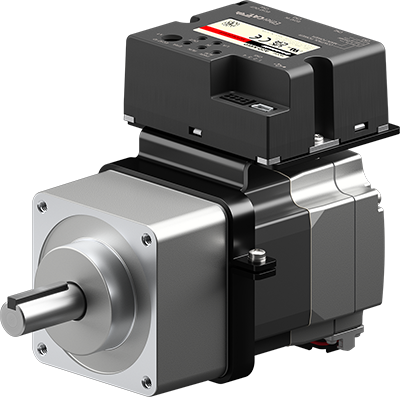

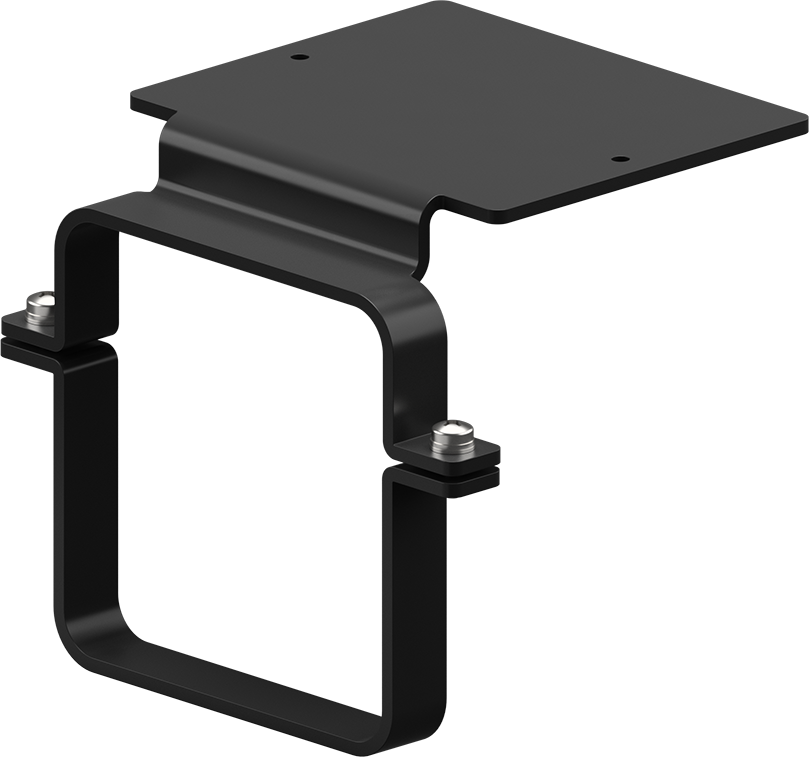

MAFP06W-6 | 60 | 3 | |||||
| 5 | ||||||||
| 7 | ||||||||
| 10 | ||||||||
|
0.5 | |||||||
| 1 | ||||||||
| 2 | ||||||||
| 3 | ||||||||
| 5 | ||||||||
| 7 | ||||||||
| 10 | ||||||||
- Easy to Install
Simply clamp the mounting bracket to the motor and tighten two screws. (Tightening torque is 0.6 [N・m])
- Neat Wiring With a Single Cable
A single connection cable can be easily wired between the motor and driver.
(Please pay attention to the bending radius and length when selecting the connection cable. Note that the 0.2 m cable should be used with the pull-out direction on the rear shaft side).
