Features | Brushless Motor (PM Motor) 750 W

The brushless motor uses a PM motor that uses a permanent magnet in the rotor. When combined with an inverter, a speed control range of 300 to 4000 r/min^* is possible. It is smaller and lighter than a three-phase AC motor, reducing the burden on assembly workers. In addition, it achieves an efficiency level of IE5, contributing to reduced electricity costs and CO₂ emissions.

• *Varies depending on the inverter being combined.

Significantly reduced motor size
Contributes to making equipment more compact

Achieved IE5 level
Reduced electricity costs

Fanless design reduces noise level
In addition, there is no scattering of dust and other particles.

Inverter-Connected

Brushless motors use permanent magnets in the rotor, making them highly efficient, compact, and lightweight.
In addition, the fanless structure has been achieved due to its high efficiency and low heat generation. It contributes to reducing equipment size and reducing the burden on workers.

• *The value for a typical three-phase AC motor 750W.

Motor Output Power 750 W (IE5)

This motor satisfies the efficiency class IE5^* for speed control motors. Contributes to reducing electricity costs and CO₂ emissions.

• *Efficiency standard value (%) for speed control motors (rated speed 1801-6000 r/min) based on the international standard IEC TS 60034-30-2.

Energy-Saving Effect (Reference Value for 1 Unit)

Electricity costs and CO₂ emissions can be reduced compared to 750 W induction motor (IE3).

• *Efficiency standard value (%) for induction motors (4 poles, 50 Hz) based on the international standard IEC 60034-30-1.

[Operating Conditions]
Operating Hours: 24 hours/day, 365 days/year
Unit Price of Electricity: 22.68 JPY/kWh
CO₂ Emission Factor: 0.457 kg/kWh

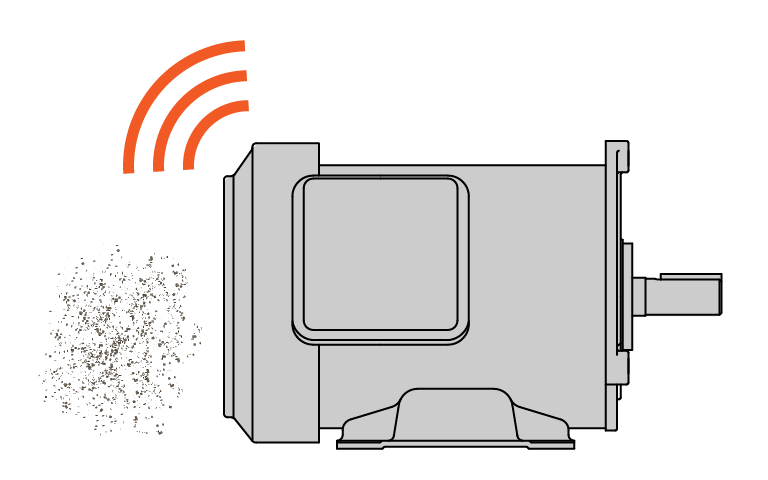

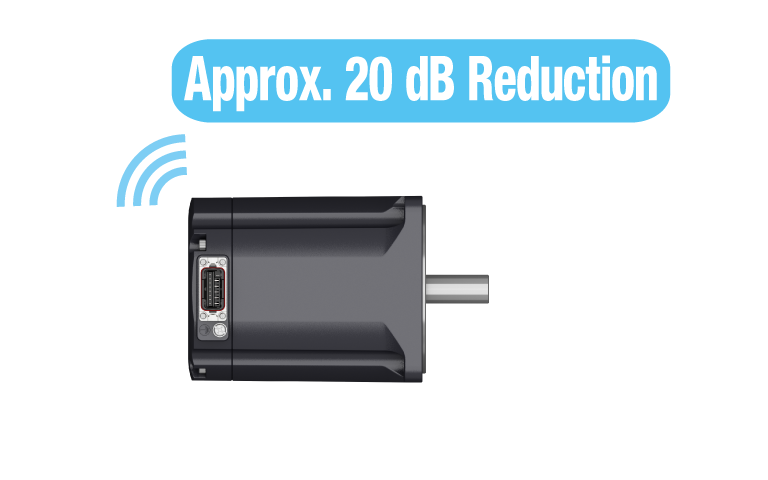

Brushless motors have fanless structures due to their high efficiency and low heat generation. The noise level is reduced by approximately 20 dB when compared to a three-phase AC motor with fan.

Measurement Conditions
・No load
・Speed: 1500 r/min
・Measured at 15 cm from the back of the motor

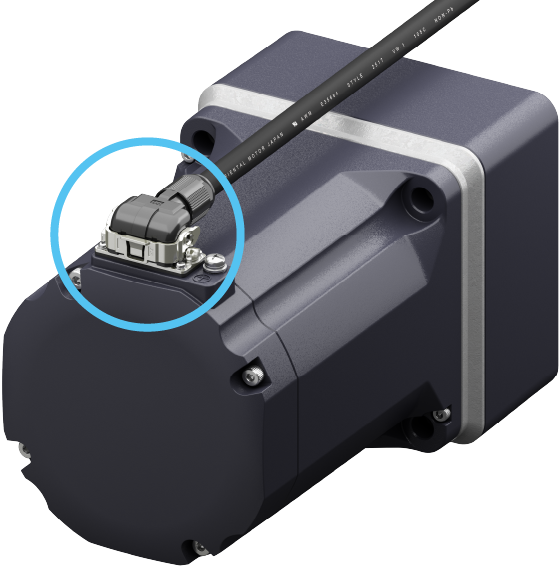

Cable connection is easy due to the locking lever that does not require screw fitting.
Reduces the hassle of connecting cables during motor installation and maintenance.

•

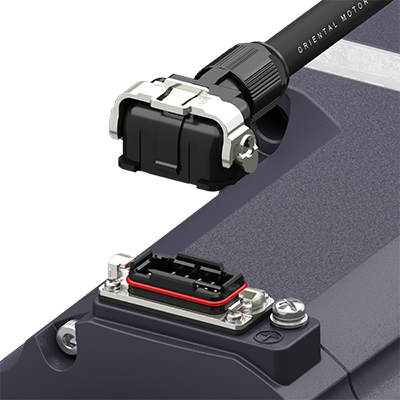

  1. Plug in the connector

•

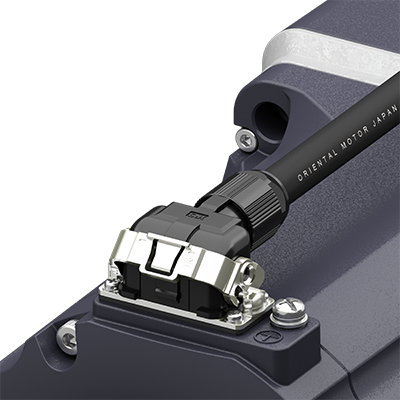

  2. Turn down the locking lever

•

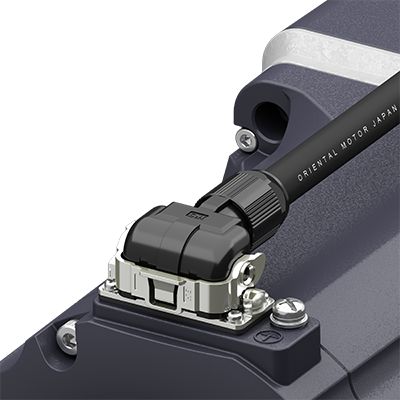

  3. Connection complete
