Specifications

Characteristics

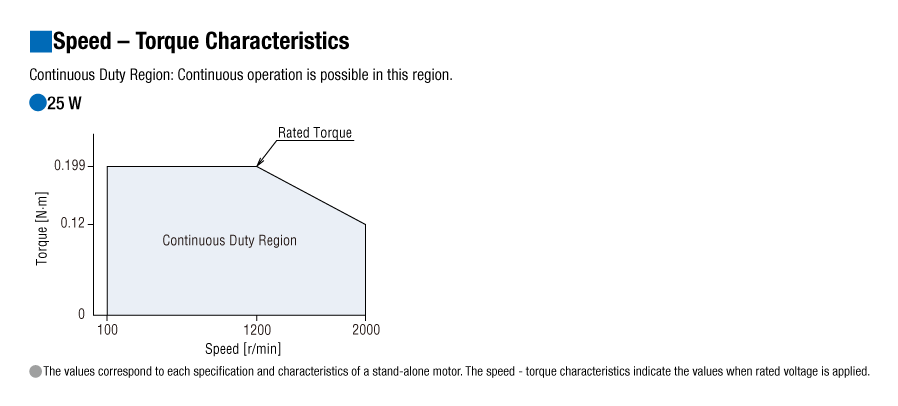

Speed - Torque Characteristics

Speed - Torque Characteristics

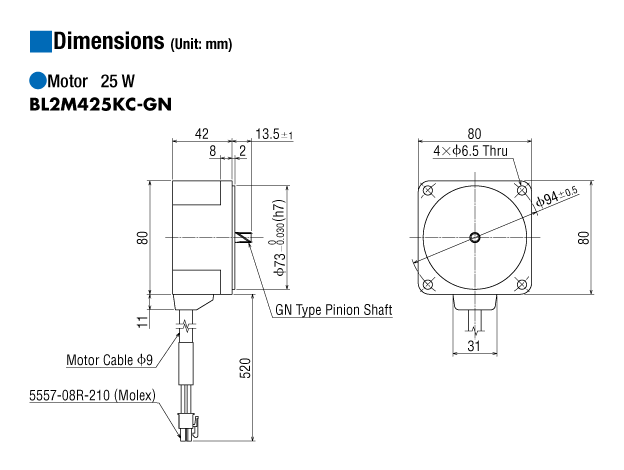

Dimensions

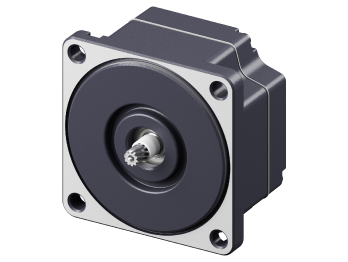

Motor

Motor

Gearhead

Gearhead

Control Circuit

Control Circuit

Connection Cable (When Selected)

Connection Cable (When Selected)

Flexible Connection Cable (When Selected)

Flexible Connection Cable (When Selected)

Data Download

Other Specifications

Common Specifications

項目		BLSD-K､ BLSD-750-C	BLSD-KR
Operating Data	Rotation Speed	25 W､ 40 W､ 90 W: 100–2000 r/min 30 W､ 60 W､ 120 W､ 750 W: 100–4000 r/min The factory default is set to the following rotation speeds. 1500 r/min (when "Function Setting Switch: SPD(SPEED)" is set to "SPD0") 1800 r/min (when "Function Setting Switch: SPD(SPEED)" is set to "SPD1")	25 W、40 W、90 W: 100–2000 r/min 30 W、60 W、120 W: 100–4000 r/min Factory Default: 0 r/min
	Acceleration Time and Deceleration Time	100–30000 ms (Factory Default: 1000 ms)
	Torque Limiting	0.0–1000.0 % (Factory Default: 1000.0 %)
	Setting Method	Support softwareMEXE02	RS-485 communication,Support softwareMEXE02
Input Signal		Input 2 points Photocoupler input method 24 VDC (-15 to +20 %)
Output Signal		Output 2 points Photocoupler and open-collector output 4.5 to 30 VDC, current less than 10 mA
Information		When information is generated, the INFO output turns ON and the PWR/SYS LED blinks blue. The motor will continue to operate.
Alarm		When an alarm occurs, the ALM-B output is turned OFF and the motor stops. At the same time, the PWR/SYS LED blinks red.
Maximum Extension Distance		BLSD-K､ BLSD-KR: Motor and driver distance 10.5 m (When a sold separately connection cable is used) BLSD750-C: Motor and driver distance 20.5 m [When a sold separately connection cable (For extension) is used]
Time Rating		Continuous

General Specifications

Item		Motor	Driver
Insulation Resistance		After continuous operation at normal ambient temperature and humidity, the measurement value between the coils and the case is 100 MΩ min. using a 500 VDC megger.	After continuous operation at normal ambient temperature and humidity, the measurement value between the heat sink and the power supply input terminal is 100 MΩ min. using a 500 VDC megger.
Dielectric Strength		No abnormality is observed even with an application of 0.5 kVAC at 50 Hz between the coils and the case for 1 minute after continuous operation at normal ambient temperature and humidity.	No abnormality is observed even with an application of 50 Hz, 0.5 kVAC between the heat sink and the power supply input terminal for 1 minute after continuous operation at normal ambient temperature and humidity.
Temperature Rise		After rated continuous operation at normal ambient temperature and humidity with a heat sink attached*1, the measurement value of the temperature rise on the case surface is 30°C max. (50°C max. for the 90 W type) using the thermocouple method.	After rated continuous operation at normal ambient temperature and humidity, the measurement value of the temperature rise of the heat sink is 50°C max. using the thermocouple method.
Operating Environment	Ambient Temperature	0 to +40°C (Non-freezing)	0 to +50°C (Non-freezing) *2
	Ambient Humidity	85% max. (Non-condensing)
	Altitude	Up to 1000 m above sea level
	Atmosphere	No corrosive gases or dust. Should not be exposed to water or oil. Cannot be used in a radioactive area, magnetic field, vacuum, or other special environments.
	Vibration	Must not be subjected to continuous vibration or excessive shock. Conforms to JIS C 60068-2-6, "Sine-Wave Vibration Test Method." Frequency Range: 10 to 55 Hz, Half Amplitude: 0.15 mm　 Sweep Direction: 3 directions (X, Y, Z), Number of Sweeps: 20 times
Storage Conditions*3	Ambient Temperature	-25 to +70°C (Non-freezing)
	Ambient Humidity	85% max. (Non-condensing)
	Altitude	Up to 3000 m above sea level
	Atmosphere	No corrosive gases or dust. Should not be exposed to water or oil. Cannot be used in a radioactive area, magnetic field, vacuum, or other special environments.
Thermal Class		UL/CSA Standards: 105 (A), EN Standards: 120 (E)	−
Degree of Protection*5		25 W, 40 W, 90 W: IP40 (Excluding the installation surface and connectors) 30 W, 60 W, 120 W: IP65 (Excluding the installation surface and connectors)	IP20

*1

The size of the heat sink (Material: Aluminum) is as follows.
30 W Type: 115 × 115 mm, thickness 5 mm, 25 W, 60 W Type: 135 × 135 mm, thickness 5 mm, 40 W, 90 W, 120 W Type: 200 × 200 mm, thickness 5 mm
The round shaft type should be mounted on a heat sink to keep the motor case surface temperature below 90°C.

*2

When drivers are installed in a close contact state, operate at an ambient temperature of 0 to +40°C.

*3

The value for storage condition applies to short periods such as the period during transport.

Note

• Do not measure insulation resistance or perform a dielectric strength test while the motor and driver are connected.

Permissible Radial Load and Permissible Axial Load

Output Power	Gear Ratio	Permissible Radial Load N		Permissible Axial Load N
		From the end of the output shaft 10mm	From the end of the output shaft 20mm
25 W	3～18	100	150	50
	25～180	200	300
40 W	3～18	250	350	100
	25～180	300	450
90 W	3～9	400	500	150
	12.5～18	450	600
	25～180	500	700

Load position

Standards

Speed - Torque Characteristics

Regulations and Standards Materials

Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)

Explanations of the Global Laws, Regulations and Standards can be found here.

Information about our compliance with safety standards for each of our product models can be found here.

Hazardous Substances

The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
