Integrated Robot Controller & Drivers MRCU Series

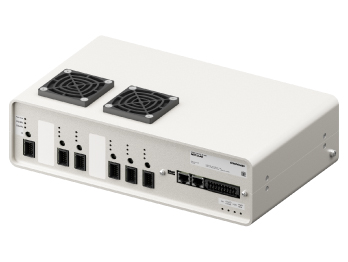

MRCU6AK

Product Classification	Product Name	CIF: List Price	FOB: List Price	Shipping Date
Robot Controller	MRCU6AK	MYR 23,160	MYR 17,759	Please contact Oriental Motor for details.

Please contact Oriental Motor for details.

Specifications

Communication Protocol		EtherNet/IP (CT17 compliant)
Vendor ID		187: Oriental Motor Company
Device Type		43: Generic Device
Transmission Rate		10/100 Mbps (autonegotiation)
Communication Mode		Full duplex/half duplex (autonegotiation)
Cable Specification		Shielded Twisted Pair (STP) cable Straight/cross, Category 5e or higher recommended (cable length: 50 m or less)
Number of Occupied Bytes	Output (Scanner → MRC01)	2~228 bytes
Number of Occupied Bytes	Input (MRC01 → scanner)	2~228 bytes
Implicit Communication	Number of Connections Supported	2
	Connection Type	Exclusive owner, input only
	Communication Cycle	10~3,200 ms
	Connection type (Scanner → MRC01)	Point−to−Point
	Connection type (MRC01 → Scanner)	Point−to−point, multicast
	Data Trigger	Cyclic
IP Address Setting Method		Parameters, DHCP
Supported Topologies		Star, linear, ring (device level ring)

Operating Environment	Ambient temperature: 0~+40°C (Non-freezing) Humidity: 85% max. (Non-condensing) Atmosphere: No corrosive gases or dust. Do not expose to water or oil.
