Proposal for a Compact Linear Actuator to Simplify Mechanisms and Improve Reliability of Medical Analyzer
| Industries | Medical, biochemical analysis, biotechnology |
|---|---|
| Process and Equipment Name | Medical Analyzer |
| Issue | Cost reduction, wiring work time reduction, space saving, reduction man-hours, quality improvement |

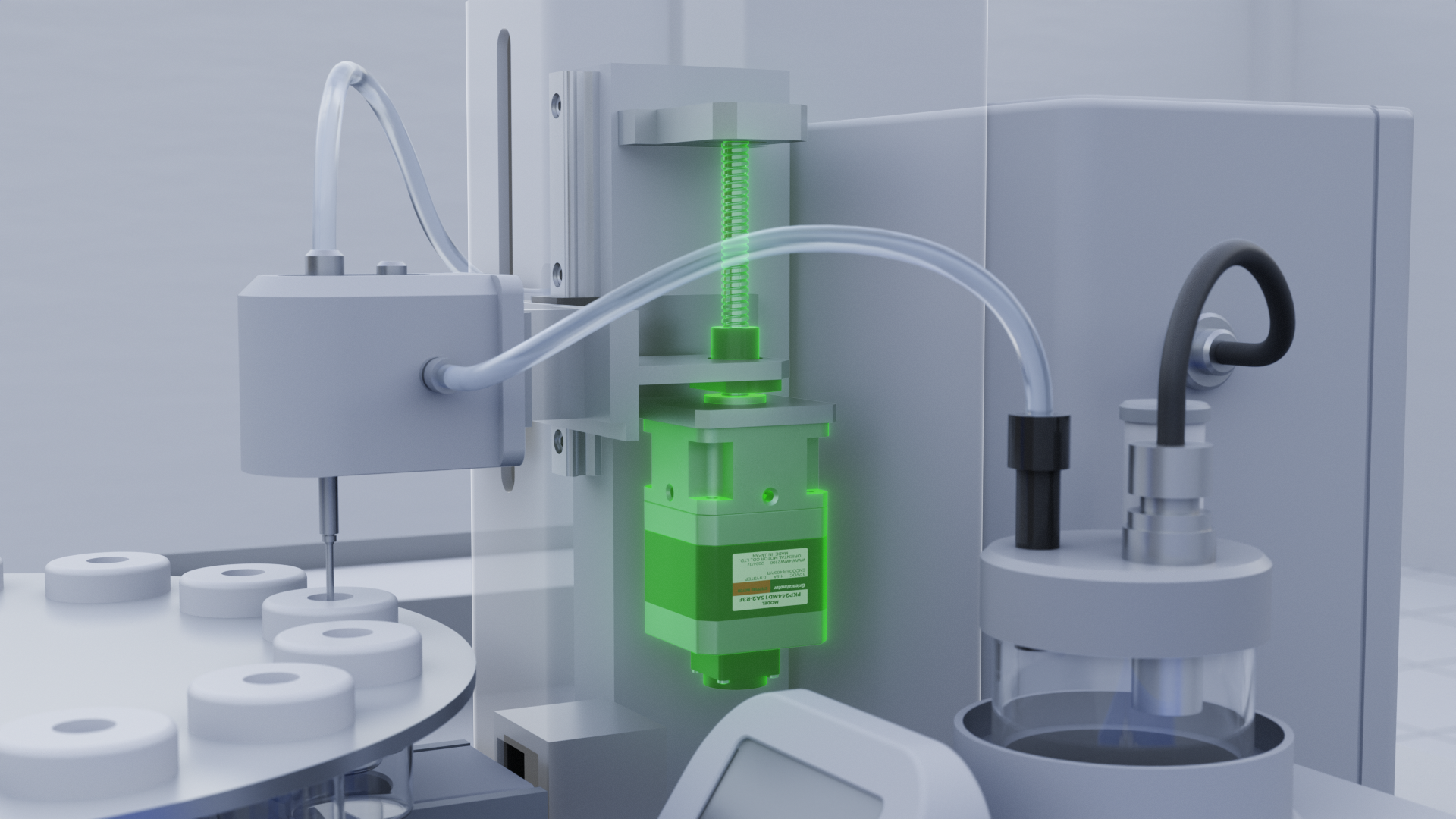

Issue: To Reduce the Number of Parts in the Vertical Drive Unit to Downsizing of the Equipment and More Reliable
Conventional Problems
- Conventional medical analyzer uses a screw mechanism to drive the vertical axis of the nozzle and are controlled by a DC motor and an external sensor, but the sensor stop method had a risk of malfunction and reliability issues
- Time was required for assembly and to adjust mounting accuracy because the motor is connected to the screw mechanism via a coupling
Solution: Linear Actuator Attachment Products and Motor With Encoder Simplified Equipment Design and Achieve Reliability
In reviewing the configuration of medical analyzer, a simple design that both space saving and offers high reliability was required. To address this issue, a mounting adapter for linear actuators, which requires no coupling, and a stepper motor with encoder for position detection used. By replacing complex conventional mechanisms with simple actuator components and 2-phase stepper motors, stable operation and reduced assembly work time are realized.
Space Saving Without Couplings and Simplify Equipment Design
Using a mounting adapter for linear actuators, space saving by reducing the number of parts, and reduces work time for assembly, mounting accuracy adjustment, inspection, and other production tasks, enabling shorter production time.
Concept Image for Equipment Design Simplification
Comparison of Number of Parts
Motor With Encoder for Improved Reliability
The introduction of the 2-phase stepper motor PKP Series with encoder has greatly improved the reliability of the equipment, as the normal operation of the motors can be confirmed by comparing the current position with the command position.
Conventional external sensors are no longer required, leading to a reduction in the number of parts or assembly time.

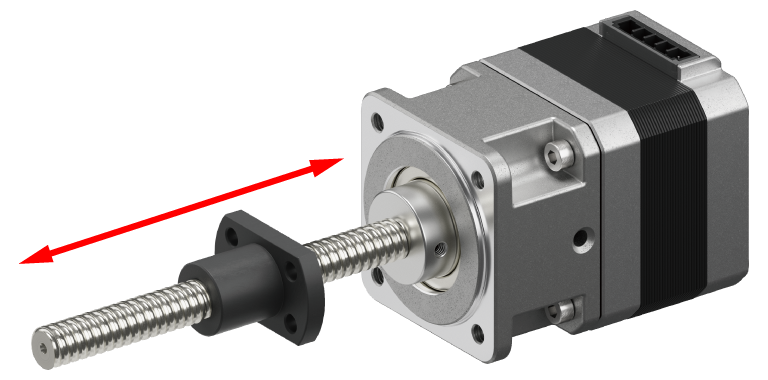

Proposed Products: Mounting Adapter for Linear Actuator/2-Phase Stepper Motor PKP Series (With encoder)
Combinable Products
- 2-phase/5-phase stepper motor PKP Series/CVD Series driver (Frame size □28 MM, □42 MM)
- αSTEP AZ Series DC input (Frame size □28 MM, □42 MM *AZM46 only)
