Brushless Motor BLV Series R Type Product Line

Product Line

Motors and Gearheads

Output Shaft Type	Frame Size [mm]	Rated Output Power [W]	Gear Ratio	Electromagnetic Brake
Parallel Shaft Gearhead	80	60	5~200	Not equipped
	90	100		Equipped/Not equipped
		200	15~50
	110	200	5~200
		400
		750	5~50
Hollow Shaft Flat Gearhead	80	60	5~200	Not equipped
	90	100		Equipped/Not equipped
		200	15~50
	104	200	10~100
		400	5~100
		750	5~50
CS Geared Motor*	60	60	5~20	Not equipped

*

A geared motor in which the motor and gearhead are integrated.

Click here for more information on gearhead features.

Motors

Output Shaft Type	Frame Size [mm]	Rated Output Power [W]	Electromagnetic Brake
Round Shaft Type	60	60	Not equipped
	90	100	Equipped/Not equipped
		200
		400
	104	750

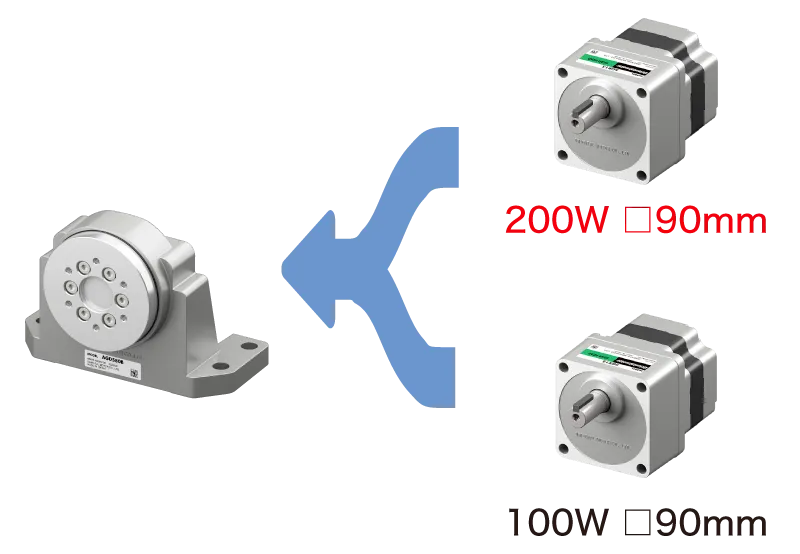

Round Shaft Type with Key	90	200	Equipped/Not equipped
		400
	104	750

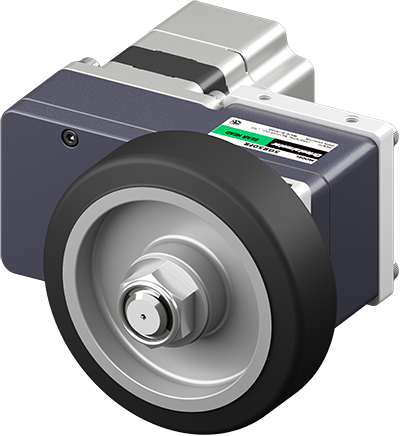

Driving Wheel Motor

• The motor, hollow shaft flat gearhead, and wheel mounting shaft are all delivered fully assembled. Therefore, the burden of wheel mechanism design can be reduced.
• The hollow flat gearhead realize for a low floor and compact vehicle width.

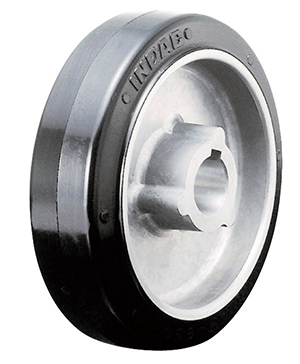

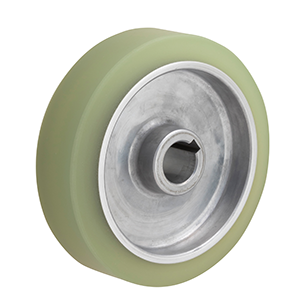

• Wheels manufactured by INOAC CASTER AND WHEEL CO., LTD. can be assembled.

Output Shaft Type	Frame Size [mm]	Rated Output Power [W]	Gear Ratio	Electromagnetic Brake	Load Capacity* [kg/wheel]	Combinable Wheels
Driving Wheel Motor	90	100	20, 50	Equipped/Not equipped	100	Rubber Driving Wheel Type DWR-150D Urethane Driving Wheel Type DWU-150D ●Installation Image
		200
	104	400			130

*

Load capacity is the value applied per wheel. Be sure to install passive wheels to prevent exceeding the load capacity.

Click here for information about the features of driving wheel motors

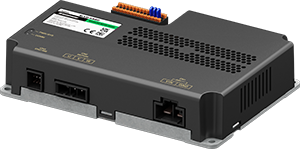

Driver

Output Power [W]		Voltage [V]
60 100 200		DC24~48
400		DC24
		DC48
750		DC48

Cable

Motor Output Power [W]	Connection Cable/Flexible Connection Cable [m]	Power Supply Cable [m]
60	0.3*~3	0.6
100 200 400 750*	1~3

*

The 0.3 m length and for 750 W cable is available as a connection cable only.

Direct Connection With a Single Cable, No Relay Required (60 W type)

The motor and driver can be directly connected with a single cable. It is possible to connect from 0.3 m to 3 m without relay processing.

Connection Cable

0.3 m~3.0 m

Flexible Connection Cable

1.0 m~3.0 m
