Rack-and-Pinion System L Series AC Speed Control Motor DSC Series Equipped
LM4F45DSC25JAM-4
Rack and Pinion Motor
| Product Classification | Product Name | CIF: List Price | FOB: List Price | Shipping Date |
|---|---|---|---|---|
| Rack and Pinion Motor | LM4F45DSC25JAM-4 | MYR 2,257 | MYR 1,990 | 19 Working Days |
• Specifications and various data of combination products may be shown on the combination product page. Please check the page of the combination product.
Included
- Operating Manual
Specifications
Dimensions

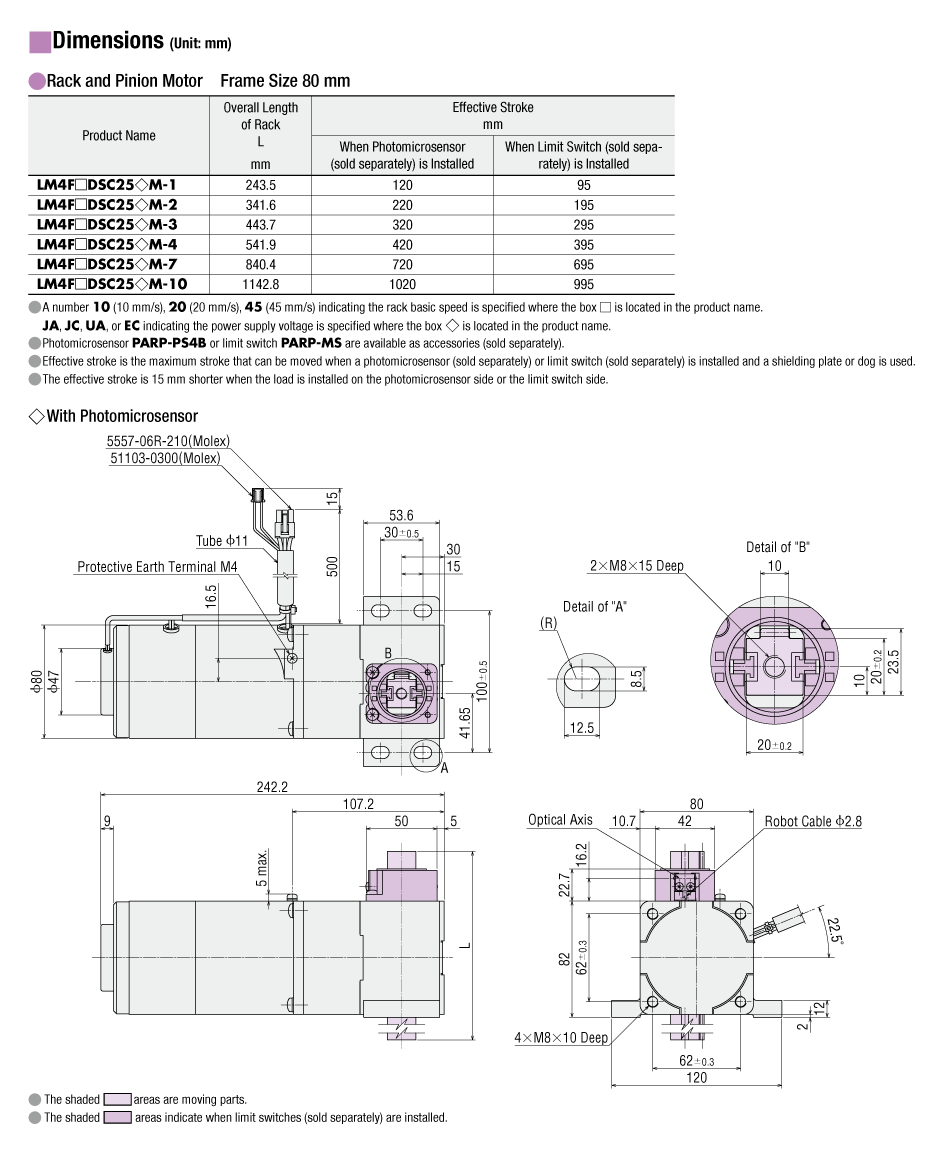

Rack and Pinion Motor (When Photomicrosensor is Installed)

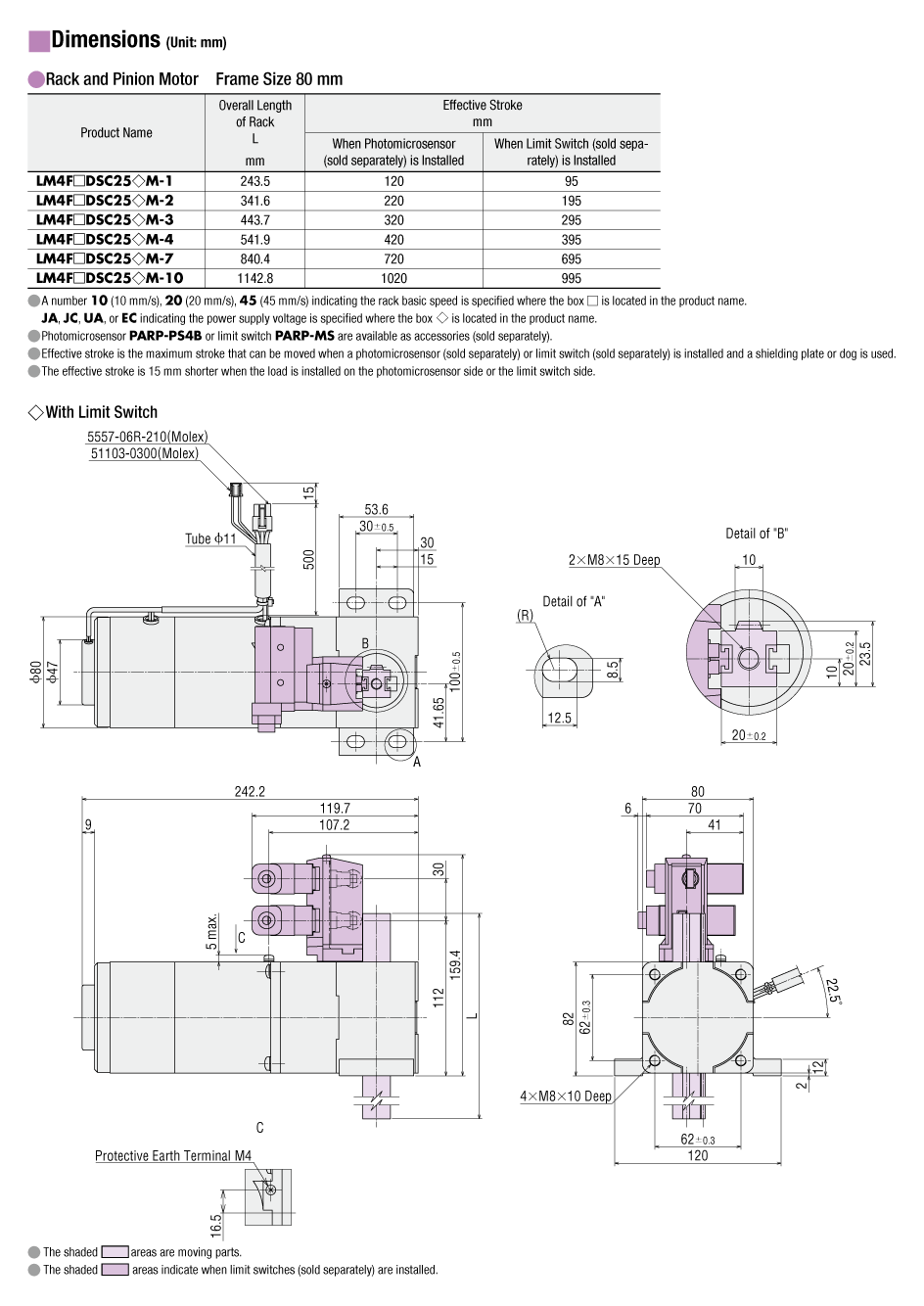

Rack and Pinion Motor (When Limit Switch is Installed)
Data Download
Other Specifications
Rack Permissible Rotational Torque (Moment)
| Product Name | Rack Permissible Rotational Torque (Moment) |
|---|---|
| LM2 | 0.3 N·m max. |
| LM4 | 0.5 N·m max. |
- Be sure to keep rotational torque below the permissible value.
If too much rotational torque is applied, the abrasion of rack bushings will be sped up.
Permissible Radial Load
| Stroke mm |
Permissible Radial Load N |
|
|---|---|---|
| LM2 | LM4 | |
| 100 | 55 | 120 |
| 200 | 40 | 90 |
| 300 | 30 | 70 |
| 400 | 25 | 60 |
| 700 | - | 40 |
| 800 | 8 | - |
| 1000 | - | 15 |
